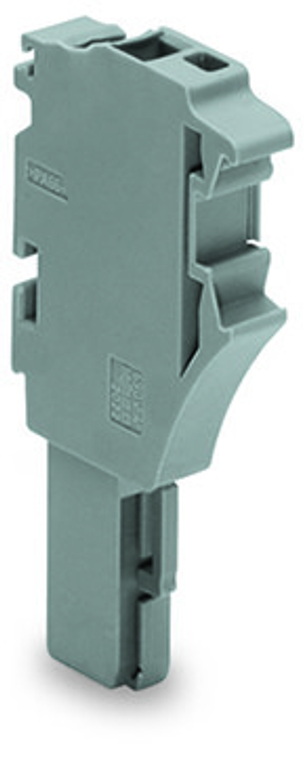

1-conductor female plug; 2.5 mm; 8-pole.
The WAGO component equivalent to 2022108000016 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a given system. The exact specifications, features, and applications of this component would be detailed in WAGO's product documentation or catalog, providing necessary information for users to integrate it into their projects or systems effectively.
- actuation type:
- Operating tool || Push-in
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 22.4 mm / 0.882 inch
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.431 MJ
- flammability class per ul94:
- V0
- height:
- 40.5 mm / 1.594 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- module width:
- 5.2 mm / 0.205 inch
- nominal cross section:
- 2.5 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- pole no:
- 8
- ratings per:
- IEC/EN 61984
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 26.310 g
- width:
- 41.6 mm / 1.638 inch
- wiring direction:
- Front-entry wiring
