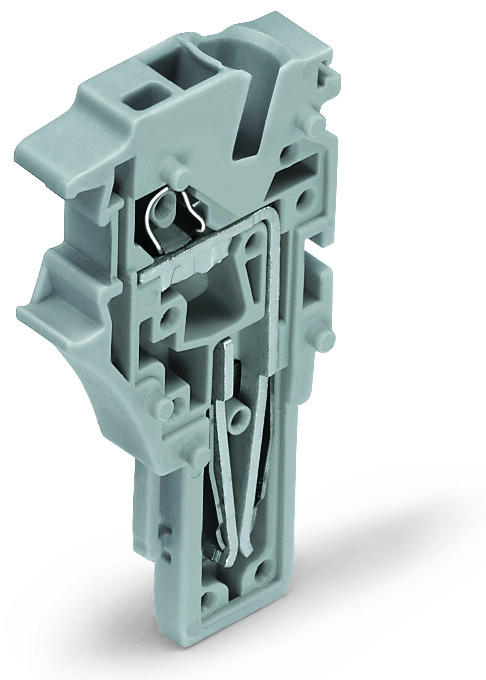

WAGO 2022-171 Center module for 1-conductor female connector; 2.5 mm²; 1-pole; 2,50 mm²; gray
Center module for 1-conductor female connector; Push-in CAGE CLAMP; 4 mm²; Pin spacing 5.2 mm; 1-pole; with integrated end plate; 4,00 mm²; gray.
The WAGO 2022 X-COM S series center module is a 1-conductor plug connector with a 5.2mm pin spacing, designed for 2.5mm² wires and rated for a current of 24A. It features a 1-pole (1P) configuration, comes in gray color, and utilizes Push-in CAGE CLAMP spring connections for secure and easy wiring. The module is designed for plug-in mounting with a width of 5.2mm and is equivalent to the model number 2022171.
- actuation type:
- Operating tool || Push-in
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- CN
- depth:
- 22.4 mm / 0.882 inch
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.053 MJ
- flammability class per ul94:
- V0
- height:
- 40.5 mm / 1.594 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 690 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- pole no:
- 1
- rated current:
- 24 A
- rated current 2:
- 32 A
- rated current csa use group c:
- 20 A
- rated current ul use group b:
- 20 A
- rated current ul use group c:
- 20 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group c:
- 600 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 61984
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 3.185 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
