Relay module; Nominal input voltage: 24
230 V AC/DC; 4 make contacts; Limiting continuous current: 3 A; Green status indicator; Module width: 25 mm.

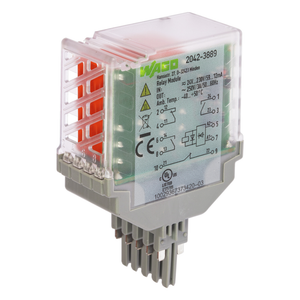

The WAGO 2042 series replacement plug-in relay features a green LED and is a 4-pole (4P) relay with control voltage ranging from 21.6 to 253V AC/DC, accommodating nominal voltages of 24V, 120V, 220V, and 230V. It has a 4NO (4PST-NO) electromechanical design with a rated continuous current of 3A. The relay includes push-in connections, plug-in mounting, and has an IP20 protection rating. It uses Silver-Nickel (AgNi) contacts and is equivalent to model 20423829.
- bounce time typ:
- 4 ms
- contact material relay:
- AgNi
- country of origin sales organisation germany:
- DE
- depth:
- 52 mm / 2.047 inch
- dielectric strength channel channel ac 1 min:
- 1.5 kVrms
- dielectric strength control load circuit ac 1 min:
- 3 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- drop out time typ:
- 6 ms
- electrical life no resistive load 23 c:
- 100 x 103 switching operations
- fire load:
- 0.232 MJ
- flammability class per ul94:
- V0
- height:
- 77.7 mm / 3.059 inch
- height from the surface:
- 59.3 mm / 2.335 inch
- input voltage range:
- 10 %
- inrush current resistive max:
- (AC) 15 A / 4 s
- limiting continuous current:
- 0.125
- mechanical life:
- 10 x 106 switching operations
- mounting type:
- Pluggable module for TOPJOB« S Carrier Terminal Block
- nominal input current at un:
- 6 mA (230 V): 58.4 mA (24 V)
- nominal input voltage un:
- AC/DC 24 ª 230 V
- number of make switch on contacts:
- 4
- operating altitude max:
- 2000 m
- packaging type:
- Box
- pollution degree:
- 2
- processing temperature:
- -25 ª +50 C
- protection type:
- IP20
- pull in time typ:
- 8 ms
- rated voltage:
- 250 V
- recommended minimum load:
- 12 V / 10 mA
- standards specifications:
- EN 61010-2-201 || EN 61373 || EN 50121-3-2
- status indicator:
- Green LED
- surrounding air temperature operation at un:
- -40 ª 50 C
- surrounding air temperature storage:
- -40 ª 85 C
- switching power resistive max:
- AC 750 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- weight:
- 59.500 g
- width:
- 25.9 mm / 1.02 inch
