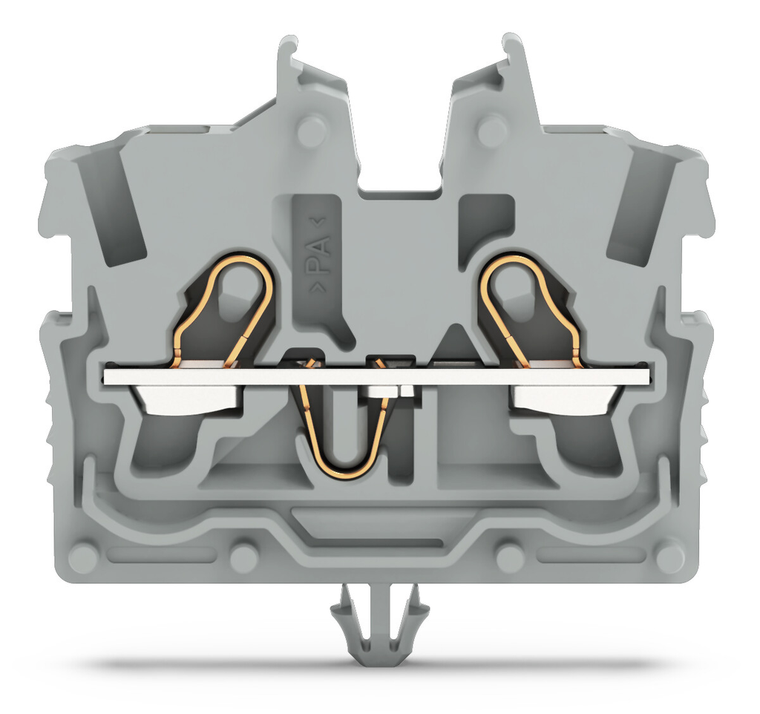

WAGO 2050-311 2-conductor miniature through terminal block with operating slots, 1 mm², gray
Wago
$1.74
2-conductor miniature through terminal block; with operating slots; 1 mm²; with snap-in mounting foot; side and center marking; with test port; Push-in CAGE CLAMP; 1,00 mm²; gray.
The WAGO 2050 TOPJOB S series is a gray, feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with snap-in mounting foot and side/center marking slots. It accommodates one feed-through pole for two wires using push-in connections, supporting a nominal cross-section of 1mm² and wire sizes from 0.14mm² to 1.5mm² (#24AWG to #16AWG). Rated for currents of 13.5A and 17.5A, it utilizes Push-in CAGE CLAMP spring connections and can be mounted on a DIN rail or surface with an accessory snap-in foot mounting, measuring 3.5mm in width, equivalent to model 2050311.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.2 mm / 1.307 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.14 1.5 mm / 24 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 0.75 mm / 20 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 0.75 mm / 24 18 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 27.2 mm / 1.071 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- Snap-in foot
- nominal cross section:
- 1 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 13.5 A
- rated current 2:
- 17.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ex e ii:
- 13.5 A
- rated current ex e ii with jumper:
- 0
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 300 V
- rated voltage en ex e ii:
- 352 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- ratings per:
- ATEX: PTB 19 ATEX 1019 U / IECEx: PTB 19.0050U (Ex eb IIC Gb)
- solid conductor:
- 0.14 1.5 mm / 24 16 AWG
- solid conductor push in termination:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 2.340 g
- width:
- 3.5 mm / 0.138 inch
- wiring direction:
- Front-entry wiring
