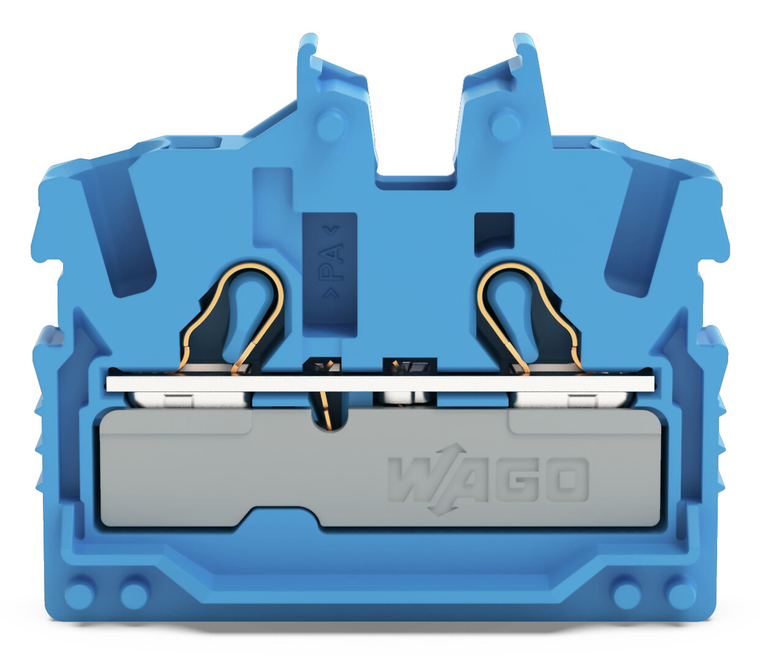

Wago 2052-324 2-conductor miniature through tb with operating slots 2.5 mm², blue

WAGO 2052-324 2-conductor miniature through tb with operating slots 2.5 mm², blue

Wago
SKU:
60488709
$1.70
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor miniature through terminal block; with operating slots; 2.5 mm²; Center terminal block without snap-in mounting foot, without mounting flange; side and center marking; with test port; Push-in CAGE CLAMP; 2,50 mm²; blue.

The WAGO 2052 TOPJOB S series is a blue, neutral-through miniature center terminal block designed for Ex e II / Ex I applications. It features a 1-deck/level with side and center marking slots, a test port, and accommodates two wires (1 push-in + 1 push-in) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block supports a rated current of 24A or 32A and utilizes Push-in CAGE CLAMP spring connections, equivalent to model 2052324.

Additional Information
actuation type:
Push-in || Operating tool
color:
Blue
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP«
country of origin sales organisation germany:
DE
depth:
35.5 mm / 1.398 inch
design:
Horizontal type
fine stranded conductor:
0.25 ƒƒ‡ª 4 mm / 22 ƒƒ‡ª 12 AWG
fine stranded conductor with ferrule push in termination:
1 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG
fine stranded conductor with insulated ferrule:
1 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG
fire load:
0.090 MJ
flammability class per ul94:
V0
height from the surface:
30 mm / 1.181 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 3
marking level:
Center/side marking
nominal cross section:
2.5 mm
nominal voltage iii 3:
800 V
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
rated current:
24 A
rated current 2:
32 A
rated surge voltage iii 3:
8 kV
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.25 ƒƒ‡ª 4 mm / 22 ƒƒ‡ª 12 AWG
solid conductor push in termination:
1 ƒƒ‡ª 4 mm / 18 ƒƒ‡ª 12 AWG
strip length:
10 ƒƒ‡ª 12 mm / 0.39 ƒƒ‡ª 0.47 inch
weight:
4.166 g
width:
5.2 mm / 0.205 inch
wiring direction:
Front-entry wiring
