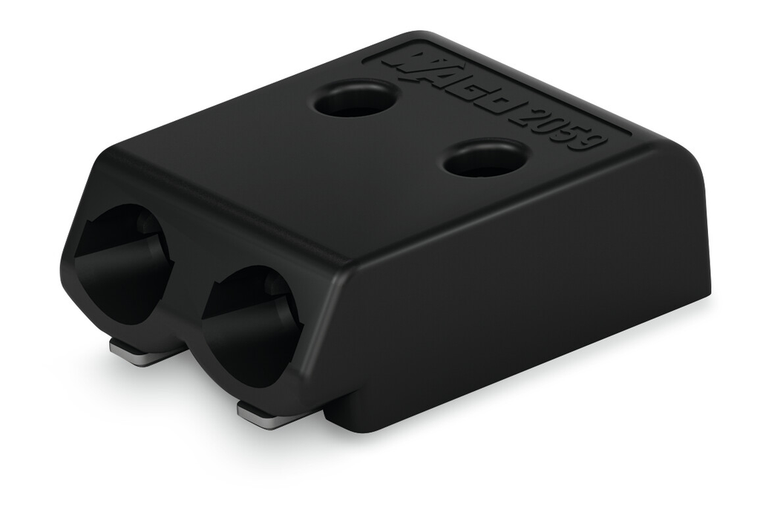

SMD PCB terminal block; 0.5 mm²; Pin spacing 3 mm; 2-pole; PUSH WIRE; in tape-and-reel packaging; 0,50 mm²; black.
The WAGO component equivalent to 2059322998403 is a specific part or product within the WAGO catalog, likely identified by a unique product number for easy reference and procurement. This component is designed to meet particular technical specifications and requirements, ensuring compatibility and functionality within various electrical or automation systems. It is essential for users to refer to this specific number to obtain the correct component for their needs, ensuring seamless integration and performance in their applications.
- actuation type:
- Operating tool
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Black
- conductor connection direction to pcb:
- 0
- connection technology:
- PUSH WIRE
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 7.9 mm / 0.311 inch
- fire load:
- 0.002 MJ
- flammability class per ul94:
- V0
- height:
- 2.7 mm / 0.106 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 63 V
- note:
- Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s
- note conductor cross section:
- For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using an operating tool.
- note conductor cross section 2:
- No reconnection of smaller conductor cross-sections (0.5 mm/20 AWG)
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- SMD
- pin spacing:
- 3 mm / 0.118 inch
- pole no:
- 2
- rated current:
- 0.125
- rated current ul 1977:
- 0.125
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul 1977:
- 250 V
- ratings per:
- IEC/EN 60664-1
- recommendation:
- Recommendation for stencil:Material thickness: 150 m: Pattern layout identical to solder pad layout
- reel diameter of tape and reel packaging:
- 330 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solid conductor:
- 0.14 0.34 mm / 26 22 AWG
- solid conductor 2:
- 0.5 mm / 20 AWG
- strip length:
- 4 5.5 mm / 0.16 0.22 inch
- strip length 2:
- 6 7.5 mm / 0.24 0.3 inch
- tape width:
- 16 mm
- weight:
- 0.168 g
- width:
- 5.9 mm / 0.232 inch
