Wago

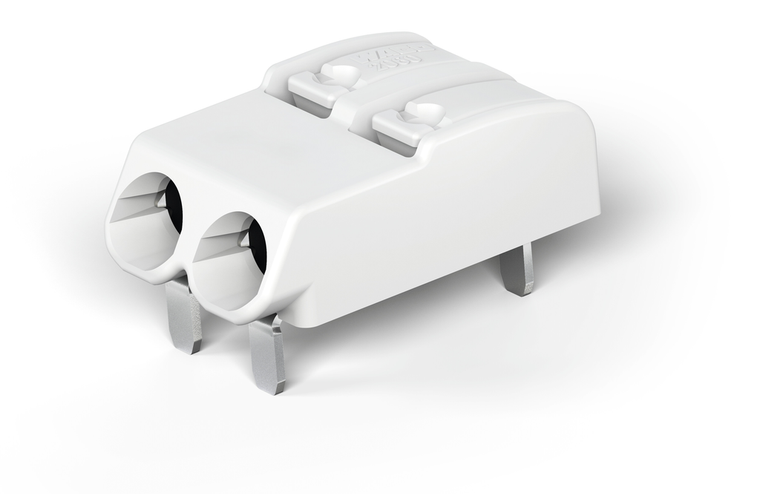

WAGO 2060-1452/998-404 Pack of 750

SKU:

2060-1452/998-404

UPC:

MPN:

2060-1452/998-404

Condition:

New

actuation type:

Push-button

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

White

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP

contact material:

Copper alloy

contact plating:

Tin-plated

country of origin sales organisation germany:

CN

depth:

12.7 mm / 0.5 inch

fine stranded conductor:

0.2 0.75 mm / 24 18 AWG

fine stranded conductor with insulated ferrule:

0.25 0.34 mm

fine stranded conductor with uninsulated ferrule:

0.25 0.34 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

6.9 mm / 0.272 inch

height from the surface:

4.5 mm / 0.177 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

320 V

nominal voltage iii 3:

63 V

note:

Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THR

pin spacing:

4 mm / 0.157 inch

plated through hole diameter thr:

1.5 (+0.1) mm

pole no:

2

rated current:

0.375

rated current ul 1977:

0.375

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage iii 2:

160 V

rated voltage ul 1977:

320 V

ratings per:

IEC/EN 60664-1

recommendation:

Recommendation for stencil:150 m material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter

reel diameter of tape and reel packaging:

330 mm

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

1.2 x 0.75 mm

solder pin length:

2.4 mm

solid conductor:

0.2 0.75 mm / 24 18 AWG

strip length:

6 7 mm / 0.24 0.28 inch

tape width:

24 mm

weight:

0.518 g

width:

7.9 mm / 0.311 inch
