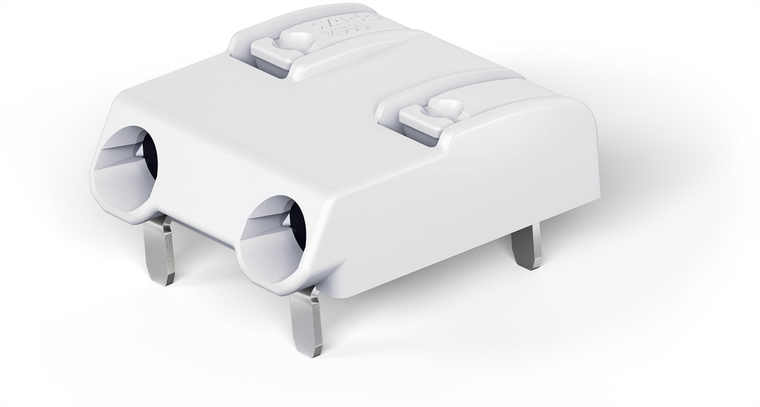

THR PCB terminal blockpush-button 0.75 mm Pin spacing 8 mm 2-pole, white
- THR PCB terminal blocks with push-buttons and Push-in CAGE CLAMP<sup></sup> connection
- Push-in termination of solid and ferruled conductors
- Convenient termination/removal of fine-stranded conductors via push-buttons
- Just 4.5 mm tall
- Available in tape-and-reel packaging for automated assembly
- Also suitable for wave soldering
The WAGO component equivalent to 20601852998404 is a specific part or product within the WAGO catalog, which is known for its electrical interconnection and automation solutions. This component likely serves a particular function in electrical or automation systems, and its equivalent number helps in identifying or cross-referencing it within WAGO's extensive range of products.
- actuation type:
- Push-button
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- White
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12.7 mm / 0.5 inch
- fine stranded conductor:
- 0.2 0.75 mm / 24 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.34 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 0.34 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 6.9 mm / 0.272 inch
- height from the surface:
- 4.5 mm / 0.177 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 400 V
- note:
- Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 8 mm / 0.314 inch
- plated through hole diameter thr:
- 1.5 (+0.1) mm
- pole no:
- 2
- rated current:
- 0.375
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage iii 2:
- 630 V
- ratings per:
- IEC/EN 60664-1
- recommendation:
- Recommendation for stencil:150 m material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter
- reel diameter of tape and reel packaging:
- 330 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 1.2 x 0.75 mm
- solder pin length:
- 2.4 mm
- solid conductor:
- 0.2 0.75 mm / 24 18 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- tape width:
- 24 mm
- weight:
- 0.618 g
- width:
- 11.9 mm / 0.467 inch
