WAGO 2060-451/998-404 Pack of 1500
Wago
$612.00

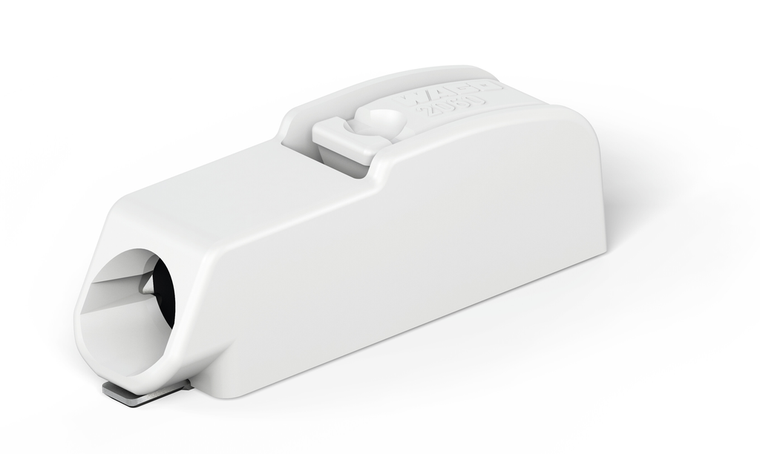

SMD PCB terminal block; Push-button; 0.75 mm; Pin spacing 4 mm; 1-pole; Push-in CAGE CLAMP in tape-and-reel packaging
- SMD PCB terminal blocks with Push-in CAGE CLAMP<sup></sup> connection technology and push-buttons
- Push-in termination of solid and ferruled conductors
- Convenient termination/removal of fine-stranded conductors via push-buttons
- Just 4.5 mm tall
- Available in tape-and-reel packaging for automated assembly
The WAGO component equivalent to 2060451998404 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly to enhance performance and reliability in electrical installations.
- actuation type:
- Push-button
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- White
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 13.1 mm / 0.516 inch
- fine stranded conductor:
- 0.2 0.75 mm / 24 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.34 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 0.34 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 4.5 mm / 0.177 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 63 V
- note:
- Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- SMD
- pin spacing:
- 4 mm / 0.157 inch
- pole no:
- 1
- rated current:
- 0.375
- rated current ul 1977:
- 0.375
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- recommendation:
- Recommendation for stencil:Material thickness: 150 m: Pattern layout identical to solder pad layout
- reel diameter of tape and reel packaging:
- 330 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solid conductor:
- 0.2 0.75 mm / 24 18 AWG
- strip length:
- 7 9 mm / 0.28 0.35 inch
- tape width:
- 24 mm
- weight:
- 0.248 g
- width:
- 3.9 mm / 0.154 inch
