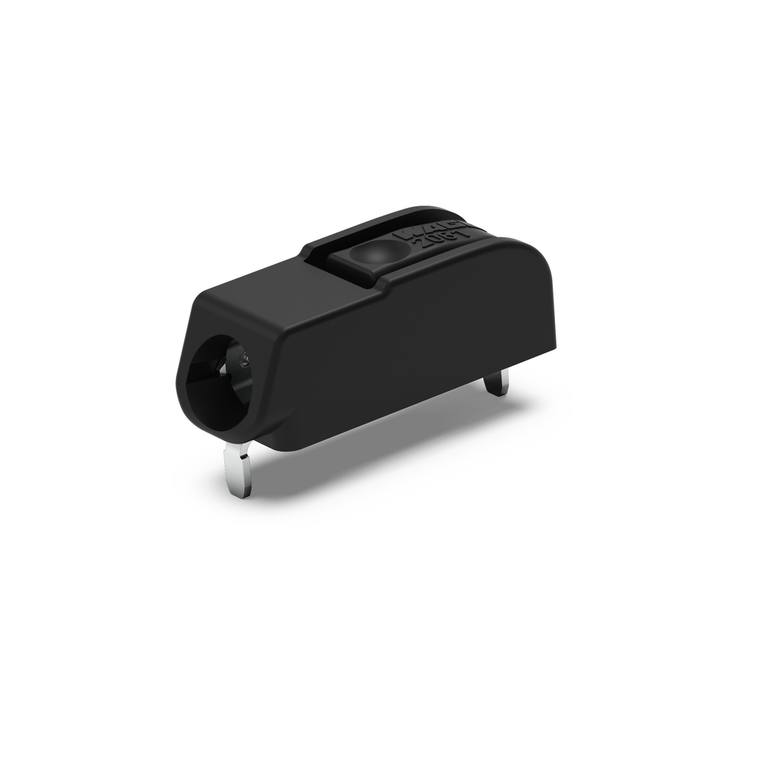

WAGO 2061-1621/998-404 THR PCB Terminal Block, 1-Pole, 1.5 mm², 640-Pack
Wago
$581.12
THR PCB terminal block; Push-button; 1.5 mm; Pin spacing 6 mm; 1-pole; Push-in CAGE CLAMP in tape-and-reel packaging
- THR PCB terminal blocks with push-buttons and Push-in CAGE CLAMP<sup></sup> connection
- Push-in termination of solid and ferruled conductors
- Push-buttons simplify insertion/removal of all conductor types
- Just 5.6 mm tall
- Available in tape-and-reel packaging for automated assembly
- Also suitable for wave soldering
- Assemble terminal blocks without pole loss
The WAGO component equivalent to 20611621998404 is a specific part or module used in electrical or automation systems. It is designed to meet certain technical specifications and requirements, ensuring compatibility and functionality within a given setup. This component is likely part of a larger system, contributing to the overall performance and efficiency of the application it is integrated into.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Black
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CN
- depth:
- 15.2 mm / 0.598 inch
- fine stranded conductor:
- 0.5 1.5 mm / 20 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 0.75 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 8 mm / 0.315 inch
- height from the surface:
- 5.6 mm / 0.22 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- note:
- Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 6 mm / 0.24 inch
- plated through hole diameter thr:
- 1.5 (+0.1) mm
- pole no:
- 1
- rated current:
- 17.5 A
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60664-1
- recommendation:
- Recommendation for stencil:150 m material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter
- reel diameter of tape and reel packaging:
- 330 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 1.2 x 0.35 mm
- solder pin length:
- 2.4 mm
- solid conductor:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 7 10 mm / 0.28 0.39 inch
- tape width:
- 24 mm
- weight:
- 0.540 g
- width:
- 5.7 mm / 0.224 inch
