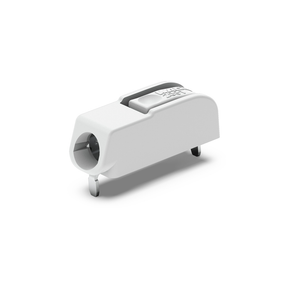

SMD PCB terminal block; Push-button; 1.5 mm; Pin spacing 6 mm; 2-pole; Push-in CAGE CLAMP in tape-and-reel packaging
- SMD PCB terminal blocks with Push-in CAGE CLAMP<sup></sup> connection and push-buttons
- Just 5.6 mm tall
- Push-in termination of solid and ferruled conductors
- Push-buttons simplify insertion/removal of all conductor types
- Available in tape-and-reel packaging for automated assembly
The WAGO component equivalent to 2061602998404 is a specific part or module used in electrical and automation systems. WAGO is known for producing high-quality components that are essential for various industrial applications, including connectors, terminal blocks, and automation technology. This particular component is likely to be part of their extensive product line designed to ensure reliable and efficient electrical connections and automation processes.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- White
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CN
- depth:
- 15.8 mm / 0.622 inch
- fine stranded conductor:
- 0.5 1.5 mm / 20 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 0.75 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 5.6 mm / 0.22 inch
- height from the surface:
- 5.6 mm / 0.22 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- note:
- Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- SMD
- pin spacing:
- 6 mm / 0.24 inch
- pole no:
- 2
- rated current:
- 17.5 A
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- recommendation:
- Recommendation for stencil:150 m material thickness: Pattern layout identical to solder pad layout
- reel diameter of tape and reel packaging:
- 330 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solid conductor:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 7 10 mm / 0.28 0.39 inch
- tape width:
- 24 mm
- weight:
- 1.695 g
- width:
- 11.7 mm / 0.461 inch
