Wago

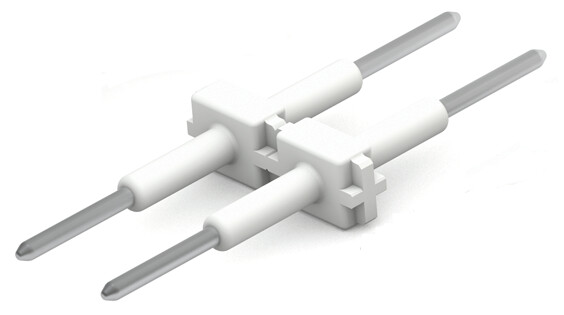

WAGO 2061-902 Board-to-Board Link; Pin spacing 6 mm; 2-pole; Length: 30 mm; white

SKU:

2061-902

UPC:

MPN:

60348660

Condition:

New

color:

White

contact material:

Copper alloy

contact plating:

Silver-plated

country of origin sales organisation germany:

CN

depth:

30 mm / 1.181 inch

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

2.5 mm / 0.098 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mating cycles max:

10

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

number of mating cycles:

Max. 10 connections/disconnections

packaging type:

Box

pin spacing:

6 mm / 0.236 inch

pole no:

2

rated current:

0.375

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage iii 2:

320 V

ratings per:

IEC/EN 60664-1

suitable:

For SMD PCB terminal blocks (2061 Series)

weight:

0.567 g

width:

11.7 mm / 0.461 inch
