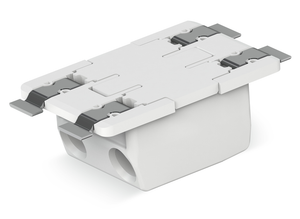

Through-Board SMD PCB Terminal Block; 0.75 mm²; Pin spacing 6.5 mm; 1-pole; Push-in CAGE CLAMP; in tape-and-reel packaging; 0,75 mm²; white.
The WAGO component equivalent to 2070451998606 is a specific part or product within the WAGO catalog, which is known for its high-quality electrical interconnection and automation solutions. This component is likely used in various industrial and commercial applications, providing reliable performance and compatibility with other WAGO products. The exact specifications and applications of this component would depend on its detailed technical description, which aligns with WAGO's standards for innovation and efficiency in electrical engineering.
- actuation type:
- Operating tool
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- White
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 22.2 mm / 0.874 inch
- design:
- Without cover
- fine stranded conductor:
- 0.2 0.75 mm / 24 18 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 7.45 mm / 0.293 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mounting type:
- Through-board
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- note:
- Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- SMD
- pin spacing:
- 6.5 mm / 0.256 inch
- pole no:
- 1
- rated current:
- 0.375
- rated current 2:
- 0.375
- rated current ul 1977:
- 0.375
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage ii 2 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 2 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated surge voltage iii 3 2:
- 4 kV
- rated voltage ii 2 2:
- 500 V
- rated voltage iii 2:
- 320 V
- rated voltage iii 2 2:
- 320 V
- rated voltage iii 3 2:
- 200 V
- rated voltage ul 1977:
- 600 V
- ratings note:
- Electrical data for FR4 PCB type
- ratings note 2:
- Electrical data for metal-core PCBs
- ratings per:
- IEC/EN 60664-1 || IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 380 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solid conductor:
- 0.2 0.75 mm / 24 18 AWG
- strip length:
- 8 10 mm / 0.31 0.39 inch
- tape width:
- 44 mm
- weight:
- 1.251 g
- width:
- 5.3 mm / 0.209 inch
