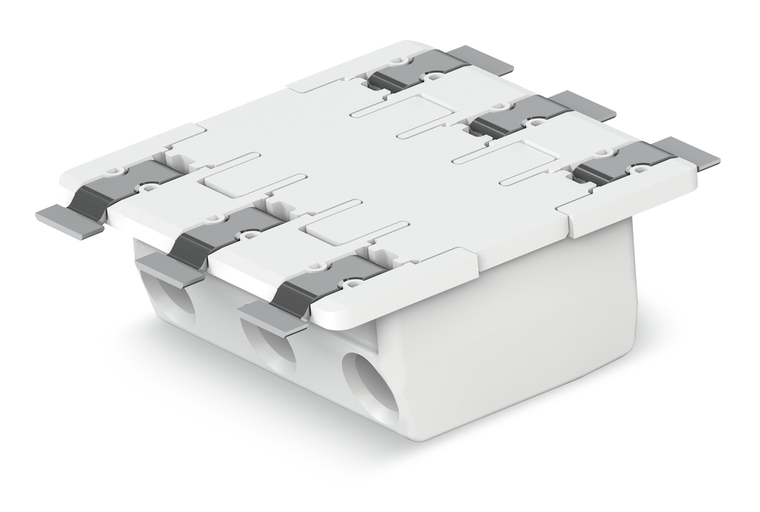

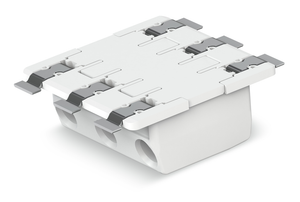

WAGO 2070-523/998-406 Pack of 318

SKU:

2070-523/998-406

UPC:

4.06E+12

MPN:

2070-523/998-406

Condition:

New

ACTUATION TYPE:

Operating tool

Color:

White

CONDUCTOR CONNECTION DIRECTION TO PCB:

0°

CONNECTION TECHNOLOGY:

Push-in CAGE CLAMP®

CONTACT MATERIAL:

Copper alloy

CONTACT PLATING:

Tin-plated

COUNTRY OF ORIGIN VKORG GERMANY:

CH

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85369010000

DEPTH:

22.2 mm / 0.874 inch

DESIGN:

With cover

FINE STRANDED CONDUCTOR:

0.2 ƒƒ¢‚¬¦ 0.75 mmƒƒ‚² / 24 ƒƒ¢‚¬¦ 18 AWG

FIRE LOAD:

0.039 MJ

FLAMMABILITY CLASS PER UL94:

V0

GTIN:

4055143652797

HEIGHT:

7.45 mm / 0.293 inch

INSULATION MATERIAL:

Polyphthalamide (PPA GF)

LEGEND RATINGS:

(III / 2) ƒƒ¢€°„¢ Overvoltage category III / Pollution degree 2

LIMIT TEMPERATURE RANGE:

-60 ƒƒ¢‚¬¦ +105 ƒƒ‚°C

MATERIAL GROUP:

I

MOUNTING TYPE:

Through-board

NOMINAL VOLTAGE II 2:

630 V

NOMINAL VOLTAGE III 3:

320 V

NOTE:

Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.

NUMBER OF SOLDER PINS PER POTENTIAL:

2

PACKAGING TYPE:

Box

PCB CONTACT:

SMD

PCB THICKNESS MAX:

2.4 mm

PIN SPACING:

6.5 mm / 0.256 inch

POLE NUMBER:

3

RATED CURRENT:

0.375

RATED CURRENT 2:

0.375

RATED CURRENT UL 1977:

0.375

RATED IMPULSE VOLTAGE III 2:

4 kV

RATED IMPULSE VOLTAGE III 3:

4 kV

RATED SURGE VOLTAGE II 2:

4 kV

RATED SURGE VOLTAGE II 2 2:

4 kV

RATED SURGE VOLTAGE III 2 2:

4 kV

RATED SURGE VOLTAGE III 3 2:

4 kV

RATED VOLTAGE II 2 2:

500 V

RATED VOLTAGE III 2:

320 V

RATED VOLTAGE III 2 2:

320 V

RATED VOLTAGE III 3 2:

200 V

RATED VOLTAGE UL 1977:

600 V

RATINGS NOTE:

Electrical data for FR4 PCB type

RATINGS NOTE 2:

Electrical data for metal-core PCBs

RATINGS PER:

IEC/EN 60664-1

RATINGS PER 2:

IEC/EN 60664-1

REEL DIAMETER OF TAPE AND REEL PACKAGING:

330 mm

SOLDER PIN ARRANGEMENT:

Over the entire terminal strip (in-line)

SOLID CONDUCTOR:

0.2 ƒƒ¢‚¬¦ 0.75 mmƒƒ‚² / 24 ƒƒ¢‚¬¦ 18 AWG

STRIP LENGTH:

8 ƒƒ¢‚¬¦ 10 mm / 0.31 ƒƒ¢‚¬¦ 0.39 inch

TAPE WIDTH:

44 mm

VARIANTS:

Reel diameter of tape-and-reel packaging: 381 mm || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

WEIGHT:

1.995 g

WIDTH:

15.8 mm / 0.622 inch
