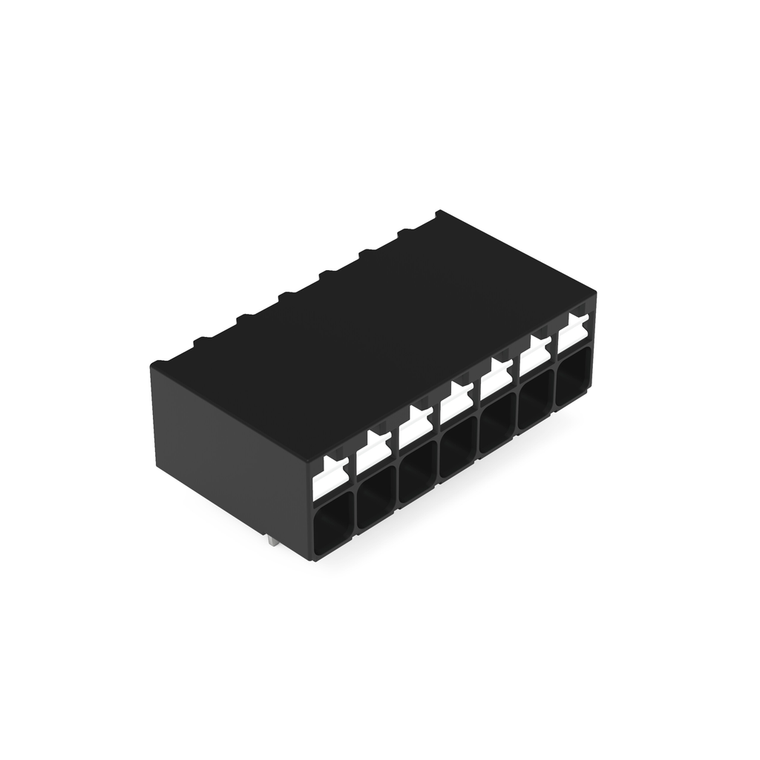

WAGO 2086-1227/300-000 7-position THR PCB terminal block, 3.5mm pitch, rated 17.5A, 320V, pack of 132
Wago
$304.92
THR PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 7-pole; Push-in CAGE CLAMP; Solder pin length 1.5 mm; 1,50 mm²; black.
The WAGO component equivalent to 20861227300000 is a specific part or product within WAGO's range of electrical interconnection and automation solutions. This component is likely used in various applications requiring reliable and efficient electrical connections, such as in industrial automation, building technology, and other electrical engineering fields. WAGO is known for its innovative products that ensure safety, efficiency, and ease of use in electrical installations.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Black
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 13.6 mm / 0.535 inch
- fine stranded conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 9.3 mm / 0.366 inch
- height from the surface:
- 7.8 mm / 0.307 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of solder pins per potential:
- 1
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1 (+0.1) mm
- pole no:
- 7
- rated current:
- 17.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 0.3 x 0.8 mm
- solder pin length:
- 1.5 mm
- solid conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- weight:
- 3.251 g
- width:
- 25.2 mm / 0.992 inch
