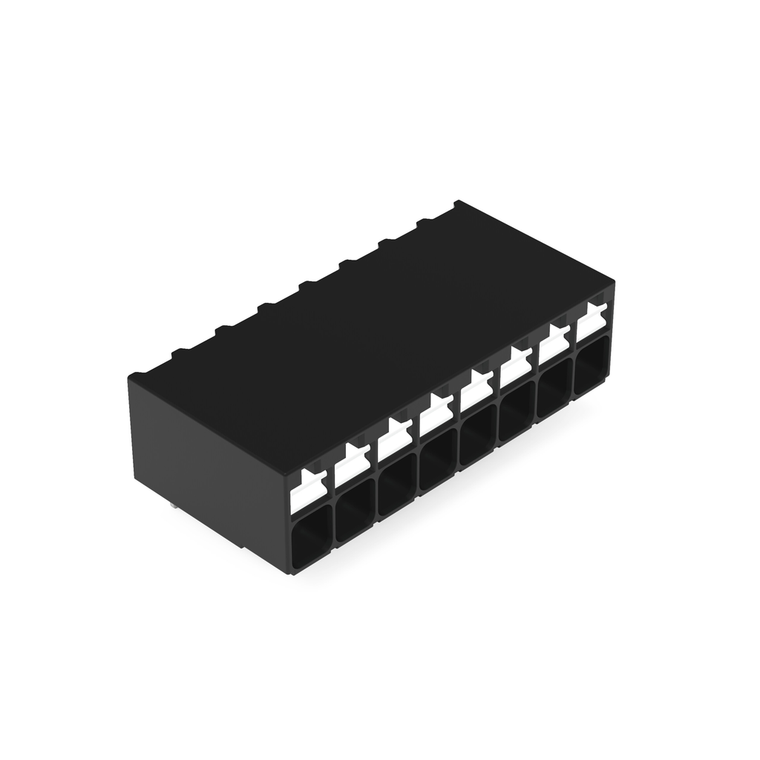

WAGO 2086-1228/300-000 Pack of 108
Wago
$285.12
THR PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 8-pole; Push-in CAGE CLAMP; Solder pin length 1.5 mm; 1,50 mm²; black.
The WAGO component equivalent to 20861228300000 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a given system. WAGO is known for producing high-quality electrical interconnection and automation solutions, and this particular component would be part of their extensive range of products designed to meet various industrial needs.
- actuation type:
- Push-button
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Black
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 13.6 mm / 0.535 inch
- fine stranded conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 9.3 mm / 0.366 inch
- height from the surface:
- 7.8 mm / 0.307 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of solder pins per potential:
- 1
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1 (+0.1) mm
- pole no:
- 8
- rated current:
- 17.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 0.3 x 0.8 mm
- solder pin length:
- 1.5 mm
- solid conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- weight:
- 3.702 g
- width:
- 28.7 mm / 1.13 inch
