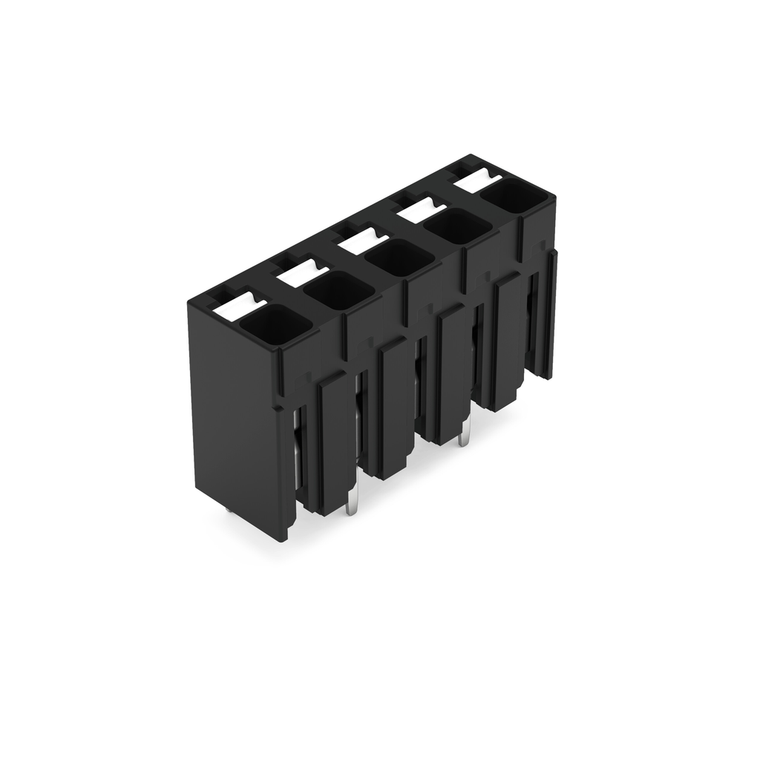

WAGO 2086-3125 THR PCB terminal block, push-button 1.5 mm² Pin spacing 5 mm 5-pole, black

(No reviews yet) Write a Review
SKU:
2086-3125
MPN:
60488273
Condition:
New
actuation type:
Push-button
approvals per:
CSA
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Black
conductor connection direction to pcb:
90
connection technology:
Push-in CAGE CLAMP«
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
CH
depth:
7.8 mm / 0.307 inch
fine stranded conductor:
0.14 ƒƒ‡ª 1.5 mm / 24 ƒƒ‡ª 16 AWG
fine stranded conductor with insulated ferrule:
0.25 ƒƒ‡ª 0.75 mm
fine stranded conductor with uninsulated ferrule:
0.25 ƒƒ‡ª 1.5 mm
fire load:
0.000 MJ
flammability class per ul94:
V0
height:
16 mm / 0.63 inch
height from the surface:
13.6 mm / 0.535 inch
insulation material:
Polyphthalamide (PPA GF)
legend ratings:
(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2
limit temperature range:
-60 ƒƒ‡ª +105 C
nominal voltage ii 2:
1000 V
nominal voltage iii 3:
500 V
number of solder pins per potential:
1
pcb contact:
THR
pin spacing:
5 mm / 0.197 inch
plated through hole diameter thr:
1 (+0.1) mm
pole no:
5
rated current:
17.5 A
rated current csa use group b:
0.416666666666667
rated current csa use group d:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group c:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
6 kV
rated surge voltage iii 2:
6 kV
rated surge voltage iii 3:
6 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
630 V
rated voltage ul use group b:
300 V
rated voltage ul use group c:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
solder pin arrangement:
Over the entire terminal strip (staggered)
solder pin dimensions:
0.3 x 0.8 mm
solder pin length:
2.4 mm
solid conductor:
0.14 ƒƒ‡ª 1.5 mm / 24 ƒƒ‡ª 16 AWG
strip length:
8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch
weight:
3.011 g
width:
24.2 mm / 0.953 inch
  • Wago 2086-3125 THR PCB terminal block, push-button 1.5 mm² Pin spacing 5 mm 5-pole, black
  • Wago 2086-3125 THR PCB terminal block, push-button 1.5 mm² Pin spacing 5 mm 5-pole, black
  • Wago 2086-3125 THR PCB terminal block, push-button 1.5 mm² Pin spacing 5 mm 5-pole, black
  • Wago 2086-3125 THR PCB terminal block, push-button 1.5 mm² Pin spacing 5 mm 5-pole, black
$1.59

Description

THR PCB terminal block; push-button; 1.5 mm²; Pin spacing 5 mm; 5-pole; Push-in CAGE CLAMP; 1,50 mm²; black.

The WAGO component equivalent to 20863125 is a specific part or model within the WAGO product line, which is known for its high-quality electrical interconnection and automation solutions. This component is designed to meet specific technical requirements and standards, ensuring reliable performance in various applications. It is part of WAGO's extensive range of products that cater to different industrial and commercial needs, providing efficient and safe electrical connections.
