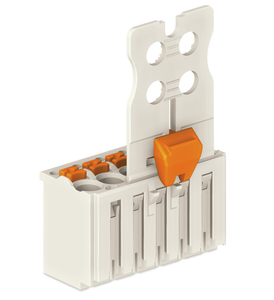

WAGO 2091-1112/002-000 12-Pole 1.5 mm² Female Connector with Push-In CAGE CLAMP®
Wago
$8.89
1-conductor female connector; push-button; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Gripping plate sliding connector release; 1,50 mm²; light gray.
The WAGO component equivalent to 20911112002000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of installation, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be used in different configurations to meet specific requirements.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 12.4 mm / 0.488 inch
- design:
- With gripping plate and sliding connector release
- fine stranded conductor:
- 0.2 1.5 mm / 24 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.035 MJ
- flammability class per ul94:
- V0
- height:
- 39 mm / 1.535 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solid conductor:
- 0.2 1.5 mm / 24 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 6.210 g
- width:
- 42 mm / 1.654 inch
