Wago 2091-1155/000-1000

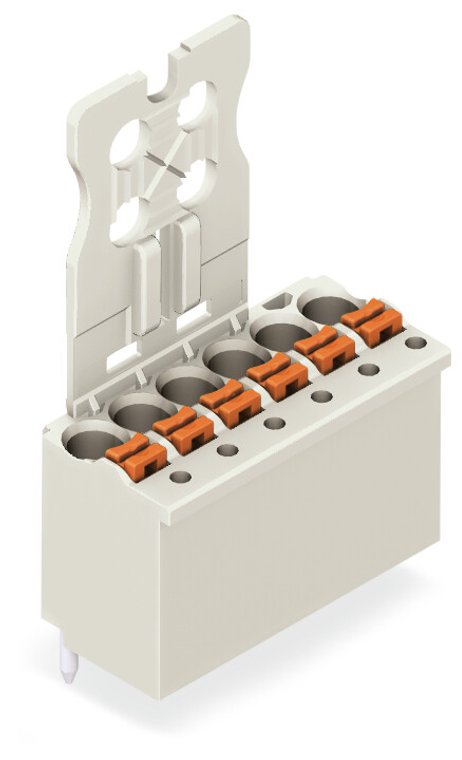

WAGO 2091-1155/000-1000 1-conductor THT female header; 1.0 mm Ø solder pin; straight; Gripping plate; direct marking; 1.5 mm²; Pin spacing 3.5 mm; 5-pole; 1,50 mm²; light gray

Wago
SKU:
51251231
$4.55
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
1-conductor THT female header1.0 mm solder pin straight, light gray.

The WAGO component equivalent to 209111550001000 is a specific part used in electrical and automation systems. It is designed to provide reliable connectivity and functionality within these systems, ensuring efficient performance and integration. This component is part of WAGO's extensive range of products known for their quality and durability, catering to various industrial applications.

Additional Information
actuation type:
Push-button
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Light gray
conductor connection direction to pcb:
90
connection technology:
Push-in CAGE CLAMP
connector connection type:
For PCB
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
DE
depth:
11.4 mm / 0.449 inch
design:
With gripping plate
drilled hole diameter with tolerance:
1.2 (+0.1) mm
fine stranded conductor:
0.2 1.5 mm / 24 14 AWG
fine stranded conductor with insulated ferrule:
0.25 0.75 mm
fine stranded conductor with uninsulated ferrule:
0.25 1.5 mm
fire load:
0.013 MJ
flammability class per ul94:
V0
height:
33 mm / 1.299 inch
insulation material:
Polyphthalamide (PPA GF)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Without
material group:
I
mating direction to the pcb:
90
mismating protection:
No
nominal voltage ii 2:
320 V
nominal voltage iii 3:
160 V
packaging type:
Box
pcb contact:
THT
pin spacing:
3.5 mm / 0.138 inch
pole no:
5
rated current:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
2.5 kV
rated surge voltage iii 2:
2.5 kV
rated surge voltage iii 3:
2.5 kV
rated voltage iii 2:
160 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
safety information 1:
The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
solder pin diameter:
1 mm
solder pin length:
3.6 mm
solid conductor:
0.2 1.5 mm / 24 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
2.850 g
width:
17.5 mm / 0.689 inch
