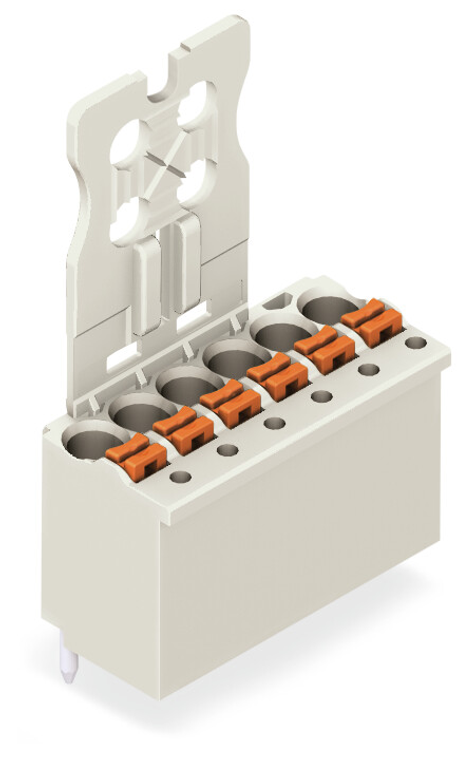

WAGO 2091-1162/000-1000 12-Pole 1.5 mm² THT Female Header, 3.5 mm Pin Spacing, Light Gray
Wago
$10.11
1-conductor THT female connector straight; push-button; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; 1.0 mm à solder pin; Gripping plate; direct marking; 1,50 mm²; light gray.
The WAGO component equivalent to 209111620001000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in complex electrical setups. The equivalent part number indicates that it matches the specifications and quality of the original WAGO component, making it a suitable replacement or alternative in relevant applications.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 90
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 11.4 mm / 0.449 inch
- design:
- With gripping plate
- drilled hole diameter with tolerance:
- 1.2 (+0.1) mm
- fine stranded conductor:
- 0.2 1.5 mm / 24 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.033 MJ
- flammability class per ul94:
- V0
- height:
- 38 mm / 1.496 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin diameter:
- 1 mm
- solder pin length:
- 3.6 mm
- solid conductor:
- 0.2 1.5 mm / 24 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 7.230 g
- width:
- 42 mm / 1.654 inch
