Wago

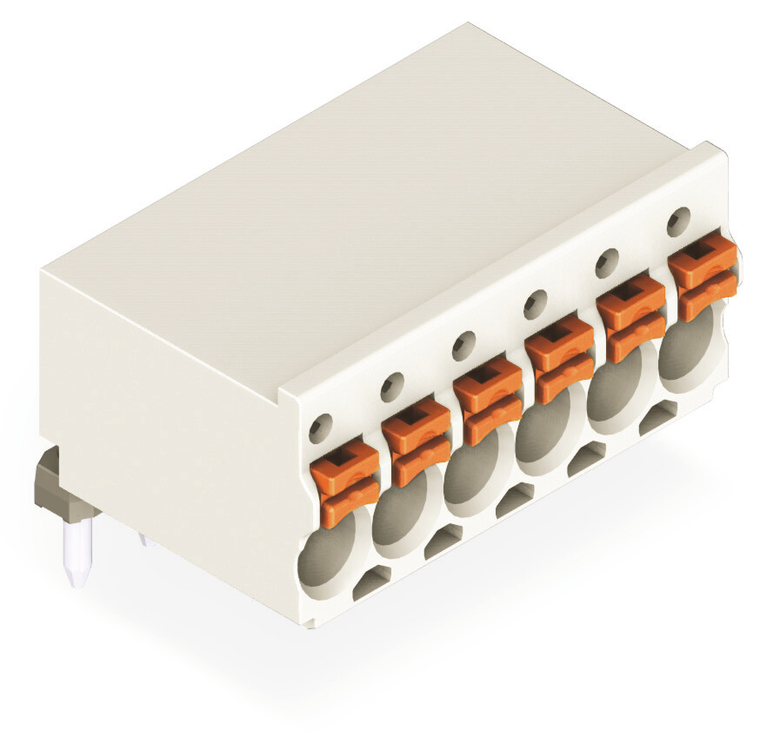

WAGO 2091-1373/200-000

SKU:

2091-1373/200-000

UPC:

MPN:

2091-1373/200-000

Condition:

New

actuation type:

Push-button

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

14 mm / 0.551 inch

fine stranded conductor:

0.2 1.5 mm / 24 14 AWG

fine stranded conductor with insulated ferrule:

0.25 0.75 mm

fine stranded conductor with uninsulated ferrule:

0.25 1.5 mm

fire load:

0.005 MJ

flammability class per ul94:

V0

height:

11.4 mm / 0.449 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

0

mismating protection:

No

nominal voltage ii 2:

320 V

nominal voltage iii 3:

160 V

packaging type:

Box

pcb contact:

THR

pin spacing:

3.5 mm / 0.138 inch

plated through hole diameter thr:

1.2 (+0.1) mm

pole no:

3

rated current:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage iii 2:

160 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en

solder pin diameter:

1 mm

solder pin length:

2.4 mm

solid conductor:

0.2 1.5 mm / 24 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

1.700 g

width:

10.5 mm / 0.413 inch
