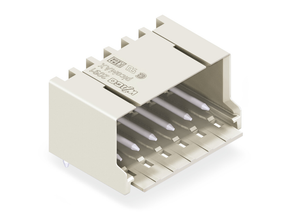

THR male header; 1.0 mm solder pin; angled; in tape-and-reel packaging; Pin spacing 3.5 mm; 5-pole; light gray.
The WAGO component equivalent to 20911425200000997406 is a specific part or module used in electrical and automation systems, known for its reliability and efficiency in connecting, controlling, and automating various processes. This component is designed to meet high standards of performance and is often utilized in industrial applications to ensure seamless operation and integration within complex systems.
- approvals per:
- UL 1059
- color:
- Light gray
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 17.5 mm / 0.689 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 14.8 mm / 0.583 inch
- height from the surface:
- 12.4 mm / 0.488 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking latch
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.2 (+0.1) mm
- pole no:
- 5
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 330 mm
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin diameter:
- 1 mm
- solder pin length:
- 2.4 mm
- weight:
- 1.830 g
- width:
- 19.5 mm / 0.768 inch
