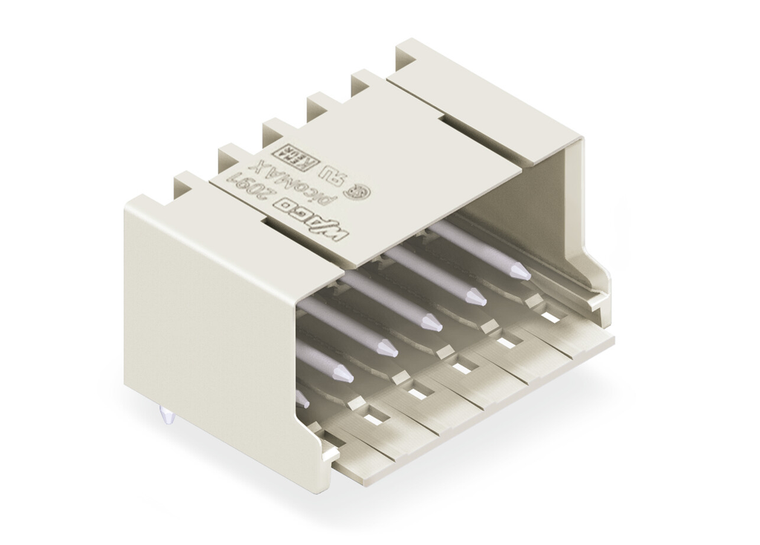

WAGO 2091-1432 THT male header; 1.0 mm Ø solder pin; angled; Pin spacing 3.5 mm; 12-pole; light gray
Wago
$3.11
THT male header; 1.0 mm solder pin; angled; Pin spacing 3.5 mm; 12-pole.
The WAGO component equivalent to 20911432 is a specific part used in various electrical and automation applications. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in complex systems. This component is known for its high quality, durability, and compatibility with a wide range of devices, making it a preferred choice for professionals in the industry.
- approvals per:
- UL 1059
- color:
- Light gray
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 17.5 mm / 0.689 inch
- drilled hole diameter with tolerance:
- 1.2 (+0.1) mm
- fire load:
- 0.077 MJ
- flammability class per ul94:
- V0
- height:
- 16 mm / 0.63 inch
- height from the surface:
- 12.4 mm / 0.488 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking latch
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin diameter:
- 1 mm
- solder pin length:
- 3.6 mm
- weight:
- 3.990 g
- width:
- 44 mm / 1.732 inch
