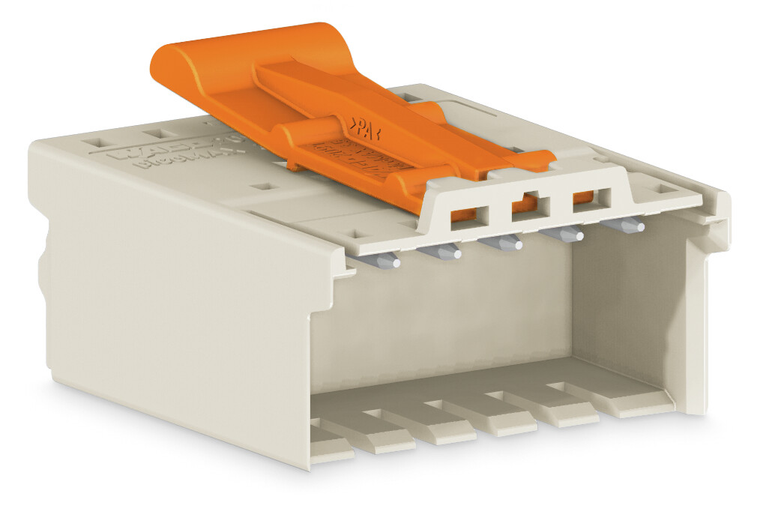

WAGO 2091-1532/002-3000 12-Pole 1.5mm² Male Connector, Light Grey, Pack of 50
Wago
$611.50
1-conductor male connectorlight gray.
The WAGO component equivalent to 209115320023000 is a specific part or module used in electrical and automation systems. It is designed to meet particular technical specifications and requirements, ensuring compatibility and functionality within the system it is intended for. This component plays a crucial role in the overall performance and reliability of the automation setup, providing necessary connectivity, control, or signal processing capabilities.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 28 mm / 1.102 inch
- fine stranded conductor:
- 0.2 1.5 mm / 24 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.018 MJ
- flammability class per ul94:
- V0
- height:
- 15.9 mm / 0.626 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking latch
- material group:
- I
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solid conductor:
- 0.2 1.5 mm / 24 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 11.314 g
- width:
- 44 mm / 1.732 inch
