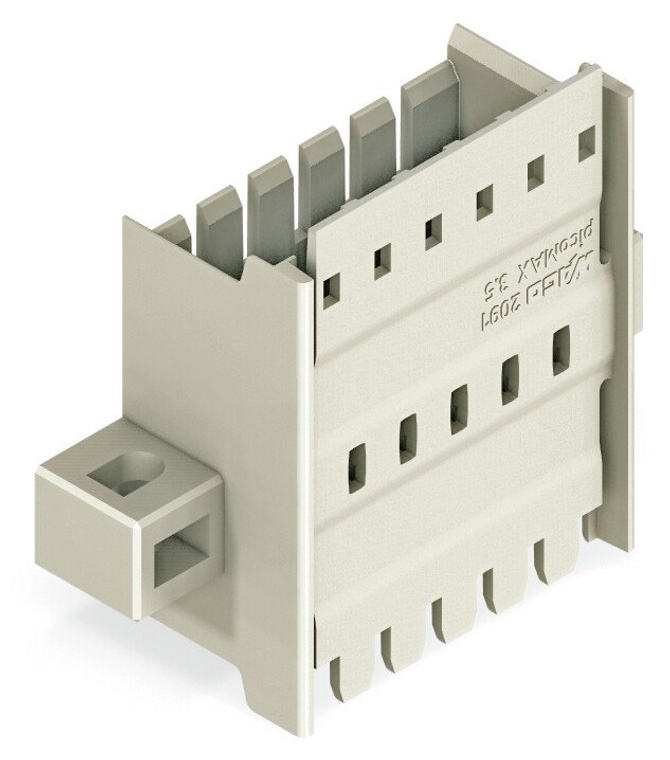

WAGO 2091-1638/024-000 panel feedthrough male connector; clamping collar; 8-pole; 3.5 mm pin spacing; light gray
Wago
$5.20
Panel feedthrough male connector; clamping collar; 1.5 mm²; 8-pole; Pin spacing 3.5 mm; light gray.
The WAGO component equivalent to 20911638024000 is a specific part or model within WAGO's product lineup, which is known for its high-quality electrical interconnection and automation solutions. This component is likely used in various industrial and commercial applications, providing reliable performance and compatibility with other WAGO products. The exact specifications and features of this component would align with WAGO's standards for innovation, safety, and efficiency in electrical engineering and automation technology.
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- connector connection type:
- For pluggable connector
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 29 mm / 1.142 inch
- fire load:
- 0.139 MJ
- flammability class per ul94:
- V0
- height:
- 12.4 mm / 0.488 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking latch
- material group:
- I
- mismating protection:
- No
- mounting type:
- Mounting flange || Feed-through mounting || Panel mounting
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 8
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- weight:
- 3.900 g
- width:
- 42 mm / 1.654 inch
