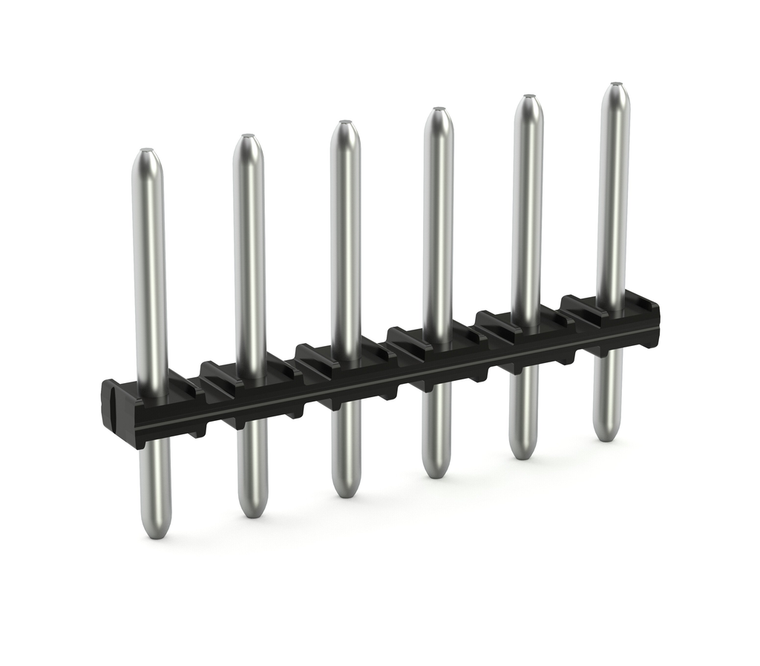

WAGO 2091-1712/200-000 Pack of 400
Wago
$972.00
THR male header; 1.0 mm solder pin; straight; Pin spacing 3.5 mm; 12-pole; black.
The WAGO component equivalent to 20911712200000 is a specific part or module used in electrical and automation systems. It is designed to meet particular technical specifications and requirements, ensuring compatibility and functionality within WAGO's range of products. This component plays a crucial role in the efficient operation of various industrial and commercial applications, providing reliable performance and integration capabilities.
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- CN
- depth:
- 2.5 mm / 0.098 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 11.7 mm / 0.461 inch
- height from the surface:
- 9.3 mm / 0.366 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.2 (+0.1) mm
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX« Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ens
- solder pin diameter:
- 1 mm
- solder pin length:
- 2.4 mm
- weight:
- 1.080 g
- width:
- 43.5 mm / 1.713 inch
