Wago

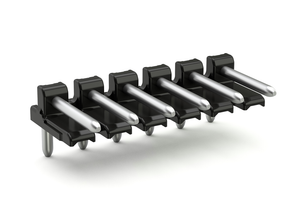

WAGO 2091-1726/200-000 Pack of 400

SKU:

2091-1726/200-000

UPC:

MPN:

2091-1726/200-000

Condition:

New

color:

Black

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

CN

depth:

10.2 mm / 0.402 inch

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

5.9 mm / 0.232 inch

height from the surface:

3.5 mm / 0.138 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

0

mismating protection:

No

nominal voltage ii 2:

320 V

nominal voltage iii 3:

160 V

packaging type:

Bag

pcb contact:

THR

pin spacing:

3.5 mm / 0.138 inch

plated through hole diameter thr:

1.2 (+0.1) mm

pole no:

6

rated current:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage iii 2:

160 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX« Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ens

solder pin diameter:

1 mm

solder pin length:

2.4 mm

weight:

0.760 g

width:

22.7 mm / 0.894 inch
