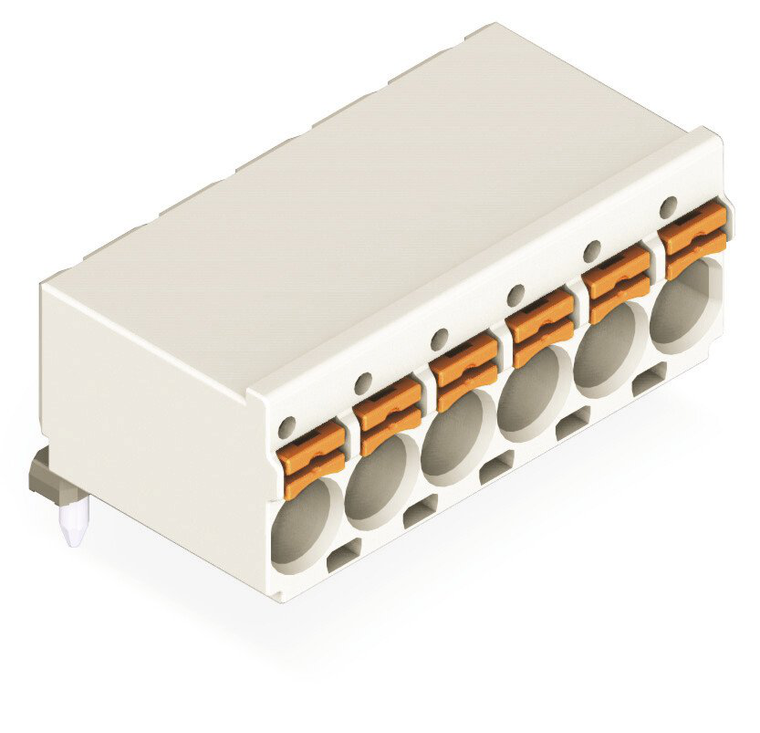

WAGO 2092-1376/200-000 1-conductor THR female header; 1.4 mm Ø solder pin angled, light gray
1-conductor THR female connector angled; push-button; Push-in CAGE CLAMP; 2.5 mm²; Pin spacing 5 mm; 6-pole; 1.4 mm à solder pin; 2,50 mm²; light gray.
The WAGO component equivalent to 20921376200000 is a specific part or product within WAGO's range of electrical interconnection and automation solutions. This component is likely used in various applications requiring reliable and efficient electrical connections, such as in industrial automation, building technology, and other electrical engineering fields. WAGO is known for its high-quality products that ensure safety, durability, and ease of use, making this component a valuable asset in its respective applications.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 15.4 mm / 0.606 inch
- fine stranded conductor:
- 0.2 2.5 mm / 24 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.015 MJ
- flammability class per ul94:
- V0
- height:
- 13.4 mm / 0.528 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 5 mm / 0.197 inch
- plated through hole diameter thr:
- 1.6 (+0.1) mm
- pole no:
- 6
- rated current:
- 16 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin diameter:
- 1.4 mm
- solder pin length:
- 2.4 mm
- solid conductor:
- 0.2 2.5 mm / 24 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 6.579 g
- width:
- 30 mm / 1.181 inch
