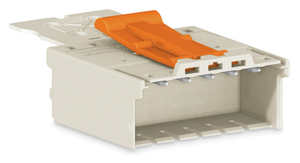

WAGO 2092-1506/002-000 6-Pole Male Terminal Block, 16A, 320V, 2.5 mm², Push-In CAGE CLAMP
Wago
$6.52
1-conductor male connector; Push-in CAGE CLAMP; 2.5 mm²; Pin spacing 5 mm; 6-pole; Gripping plate; 2,50 mm²; light gray.
The WAGO component equivalent to 20921506002000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 57.6 mm / 2.268 inch
- design:
- With gripping plate
- fine stranded conductor:
- 0.2 2.5 mm / 24 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.155 MJ
- flammability class per ul94:
- V0
- height:
- 18.2 mm / 0.717 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking latch
- material group:
- I
- mismating protection:
- No
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 6
- rated current:
- 16 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solid conductor:
- 0.2 2.5 mm / 24 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 11.900 g
- width:
- 32.2 mm / 1.268 inch
