Wago

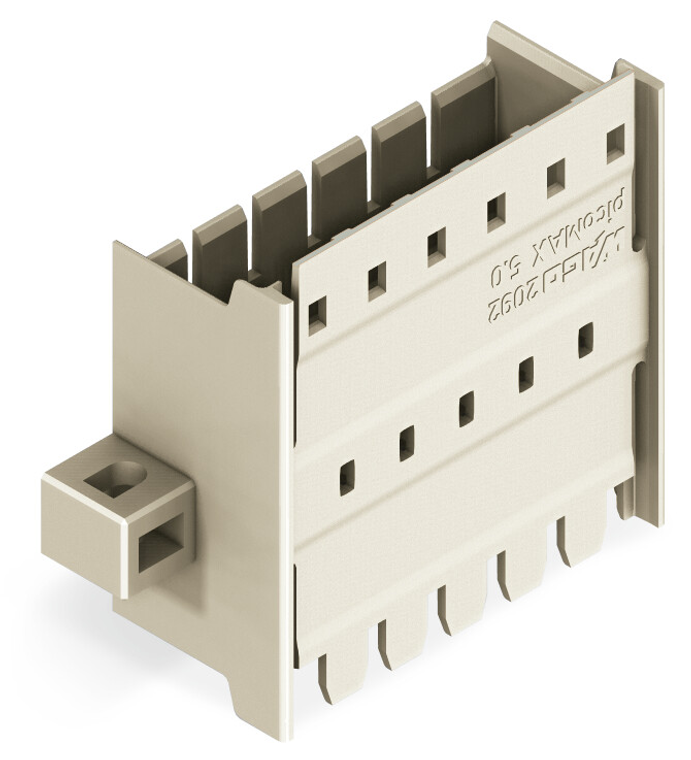

WAGO 2092-1635/024-000 Panel feedthrough male connector; clamping collar; Pin spacing 5 mm; 5-pole; light gray

SKU:

2092-1635/024-000

UPC:

MPN:

51235372

Condition:

New

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

connector connection type:

For pluggable connector

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

33.4 mm / 1.315 inch

fire load:

0.104 MJ

flammability class per ul94:

V0

height:

14.4 mm / 0.567 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Locking latch

material group:

I

mismating protection:

No

mounting type:

Mounting flange || Feed-through mounting || Panel mounting

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

packaging type:

Box

pin spacing:

5 mm / 0.197 inch

pole no:

5

rated current:

16 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en

weight:

4.860 g

width:

39.2 mm / 1.543 inch
