Wago

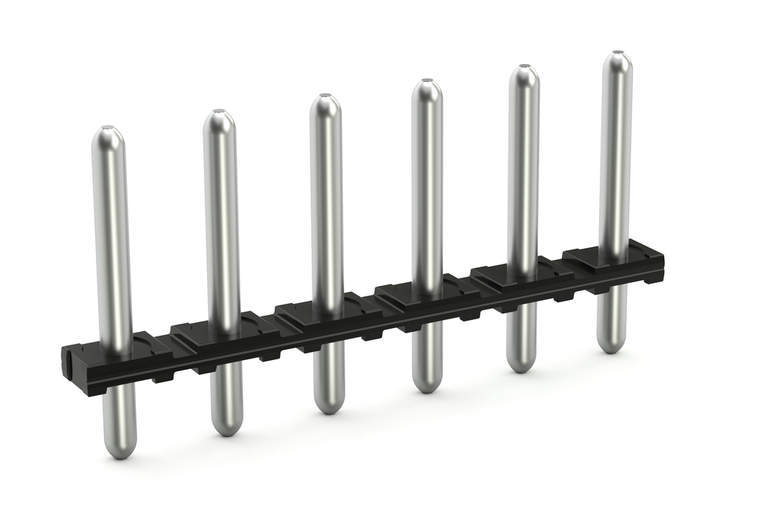

WAGO 2092-1702 Pack of 400

SKU:

2092-1702

UPC:

MPN:

2092-1702

Condition:

New

color:

Black

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

CN

depth:

2.8 mm / 0.110 inch

drilled hole diameter with tolerance:

1.6 (+0.1) mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

14.6 mm / 0.575 inch

height from the surface:

11 mm / 0.433 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

90

mismating protection:

No

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

packaging type:

Bag

pcb contact:

THT

pin spacing:

5 mm / 0.197 inch

pole no:

2

rated current:

16 A

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage iii 2:

320 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX« Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ens

solder pin diameter:

1.4 mm

solder pin length:

3.6 mm

weight:

0.420 g

width:

12.9 mm / 0.508 inch
