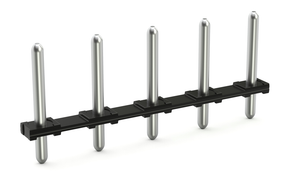

WAGO 2092-1705/200-000 THR solder pin strip, 5-pole, 1.4 mm solder pin, 5 mm pitch, black, pack of 400
Wago
$436.00
THR male header; 1.4 mm solder pin; straight; Pin spacing 5 mm; 5-pole; black.
The WAGO component equivalent to 20921705200000 is a specific part or model within the WAGO product line, which is known for its high-quality electrical interconnection and automation solutions. This component is likely used in various industrial and commercial applications, providing reliable performance and compatibility with other WAGO products.
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- CN
- depth:
- 2.8 mm / 0.110 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 13.4 mm / 0.528 inch
- height from the surface:
- 11 mm / 0.433 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- No
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 5 mm / 0.197 inch
- plated through hole diameter thr:
- 1.6 (+0.1) mm
- pole no:
- 5
- rated current:
- 16 A
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX« Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ens
- solder pin diameter:
- 1.4 mm
- solder pin length:
- 2.4 mm
- weight:
- 0.970 g
- width:
- 27.9 mm / 1.098 inch
