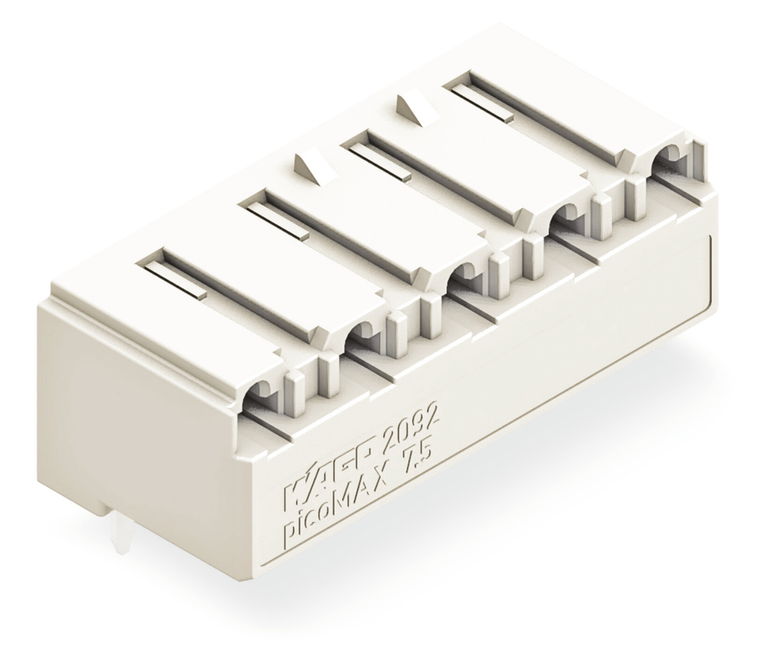

WAGO 2092-3322/200-000 THT female header, 2-pole, angled, 7.5 mm pin spacing, 0.4 x 1.3 mm solder pin, light gray
Wago
$2.44
THR female header; angled; Pin spacing 7.5 mm; 2-pole; 0.4 x 1.3 mm solder pin; light gray.
The WAGO component equivalent to 20923322200000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly into existing setups, offering flexibility and performance in demanding environments.
- approvals per:
- UL 1059
- color:
- Light gray
- connector connection type:
- For PCB
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 15.4 mm / 0.606 inch
- fire load:
- 0.057 MJ
- flammability class per ul94:
- V0
- height:
- 16 mm / 0.63 inch
- height from the surface:
- 13.6 mm / 0.535 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 7.5 mm / 0.295 inch
- plated through hole diameter thr:
- 1.5 (+0.1) mm
- pole no:
- 2
- rated current:
- 16 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage iii 2:
- 630 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin dimensions:
- 0.4 x 1.3 mm
- solder pin length:
- 2.4 mm
- weight:
- 2.290 g
- width:
- 12.5 mm / 0.492 inch
