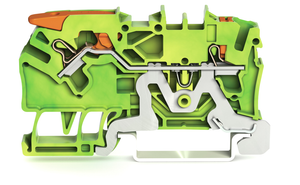

WAGO 2104-5207 2-Conductor Ground Terminal Block with Lever and Push-Button, 4 mm², Green/Yellow
Wago
$10.82
2-conductor ground terminal block; with lever and push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 4,00 mm²; green-yellow.
The WAGO 2104 TOPJOB S series ground/earthing terminal block is a green-yellow, single-deck unit with a lever, button, side/lateral, and center marking slots, featuring a test port. It supports one grounding/protective-earth (1PE) connection and accommodates two wires (1 push-in + 1 push-in) with a nominal cross-section of 4mm², suitable for wire sizes ranging from 0.5mm² to 6mm² or #20AWG to #10AWG. The terminal block uses Push-in CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 6.2mm, equivalent to model 21045207.
- actuation type:
- Push-in || Lever
- actuation type 2:
- Push-in || Push-button || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 4 mm / 18 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 70.7 mm / 2.783 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- solid conductor:
- 0.5 6 mm / 20 10 AWG
- solid conductor push in termination:
- 1.5 6 mm / 14 10 AWG
- strip length:
- 11 13 mm / 0.43 0.51 inch
- weight:
- 15.989 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
