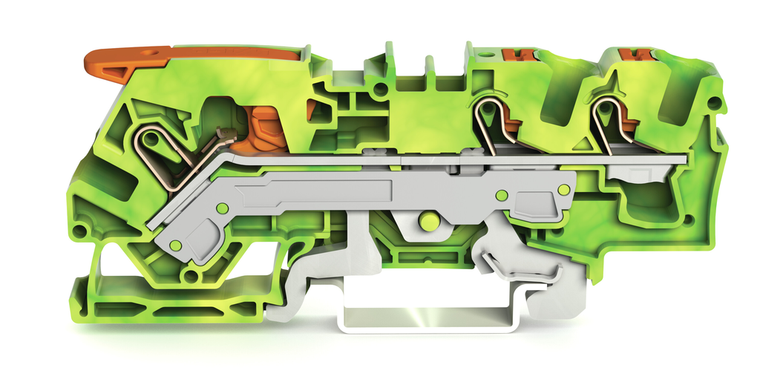

3-conductor ground terminal block6 mm, green-yellow
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Lever
- Actuation type 2: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 6 mm
- Solid conductor: 0.5 10 mm / 20 8 AWG
- Solid conductor, push-in termination: 1 10 mm / 14 8 AWG
- Fine-stranded conductor: 0.5 10 mm / 20 8 AWG
- Fine-stranded conductor with ferrule with plastic collar: 2.5 6 mm / 16 10 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 2.5 6 mm / 16 10 AWG
- Strip length: 13 15 mm / 0.51 0.59 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
Geometrical Data
- Width: 7.5 mm / 0.295 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 91.2 mm / 3.591 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.000 MJ
- Weight: 26.371 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143742504
- Customs Tariff No.: 85369010000
The WAGO 2106 TOPJOB S series ground/earthing terminal block is designed for Ex e II applications and features a 1-deck/level structure with a lever, button, and side/lateral and center marking slots. It is green-yellow in color and supports 1 grounding/protective-earth (1PE) connection for 3 wires (1 push-in + 2 push-in) with a 6mm2 nominal cross-section, suitable for wire sizes ranging from 0.5mm2 to 10mm2 or #20AWG to #8AWG. The terminal block utilizes Push-in CAGE CLAMP spring connections and is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 7.5mm width, equivalent to model 21065307.
- actuation type:
- Push-in || Lever
- actuation type 2:
- Push-in || Push-button || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.012 MJ
- flammability class per ul94:
- V0
- height:
- 91.2 mm / 3.591 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 1 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 26.371 g
- width:
- 7.5 mm / 0.295 inch
- wiring direction:
- Front-entry wiring
