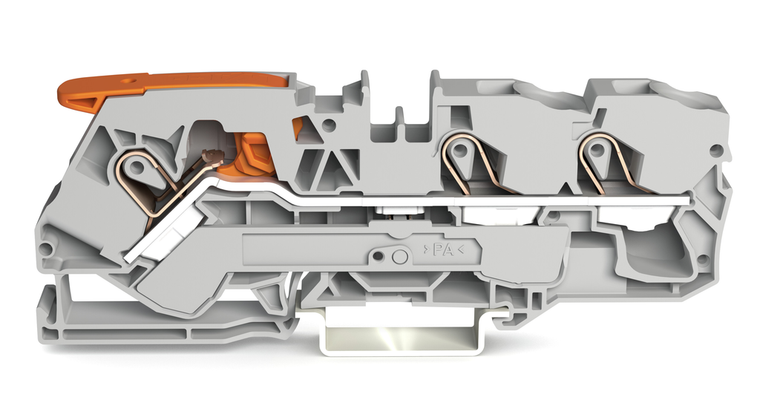

TOPJOBS feedthrough terminal block with Lever and Open Tool Slot; rail mount; 3-conductor; 10 mm wide; gray.
The WAGO 2110 TOPJOB S series feed-through terminal block is a gray, single-deck unit with a lever on one side, featuring side and center marking slots and a test port. It accommodates one feed-through pole and three wires (one push-in and two push-in) with a nominal cross-section of 10mm², suitable for wire sizes ranging from 0.5mm² to 16mm² or #20AWG to #6AWG. The terminal block supports a rated current of 57A or 74A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 10mm width and is equivalent to model 21101301.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 36.9 mm / 1.453 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 16 mm / 20 6 AWG
- fine stranded conductor with ferrule push in termination:
- 4 10 mm / 12 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 10 mm / 20 8 AWG
- fire load:
- 0.029 MJ
- flammability class per ul94:
- V0
- height:
- 110.4 mm / 4.346 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 10 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 57 A
- rated current 2:
- 74 A
- rated current csa use group b:
- 65 A
- rated current csa use group c:
- 65 A
- rated current ex e ii:
- 57 A
- rated current ex e ii with jumper:
- 50 A
- rated current ul use group b:
- 65 A
- rated current ul use group c:
- 65 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 550 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.5 16 mm / 20 6 AWG
- solid conductor push in termination:
- 4 16 mm / 14 6 AWG
- strip length:
- 17 19 mm / 0.67 0.75 inch
- weight:
- 31.834 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
