Wago

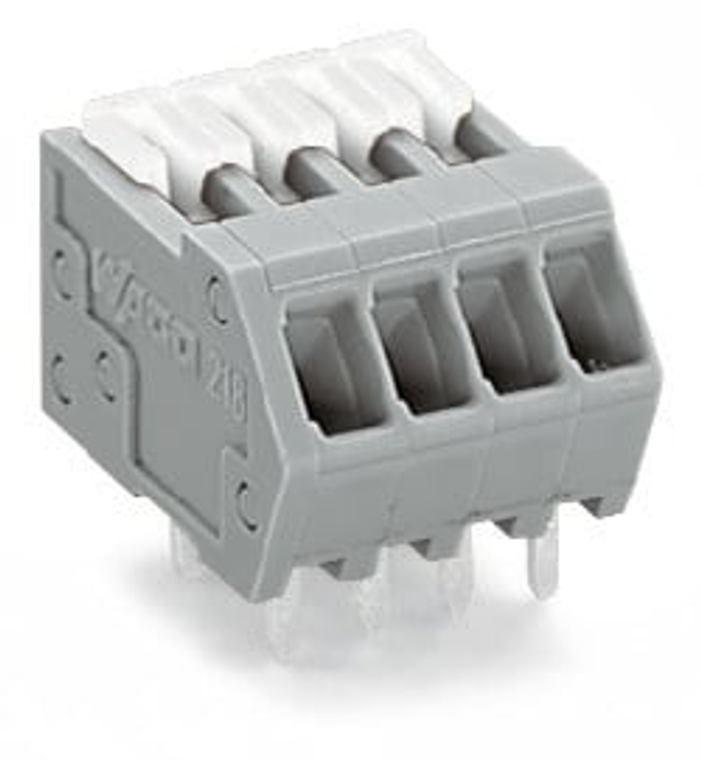

WAGO 218-508/000-012

SKU:

218-508/000-012

UPC:

MPN:

218-508/000-012

Condition:

New

actuation type:

Slider

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Orange

conductor connection direction to pcb:

40

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

13 mm / 0.512 inch

drilled hole diameter with tolerance:

1.1 (+0.1) mm

fine stranded conductor:

0.08 0.5 mm / 28 20 AWG

fine stranded conductor with insulated ferrule:

0.25 mm

fine stranded conductor with uninsulated ferrule:

0.25 mm

fire load:

0.035 MJ

flammability class per ul94:

V0

height:

10.9 mm / 0.429 inch

height from the surface:

8.1 mm / 0.319 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

320 V

nominal voltage iii 3:

80 V

note conductor cross section:

Terminating 0.75 mm/18 AWG conductors is possible: however insulation diameter allows only every other clamping unit to be terminated with this conductor size.

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

2.54 mm / 0.1 inch

pole no:

8

rated current:

0.25

rated current csa use group b:

0.166666666666667

rated current ul use group b:

0.166666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage csa use group b:

150 V

rated voltage iii 2:

160 V

rated voltage ul use group b:

150 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.5 x 0.75 mm

solder pin length:

2.8 mm

solid conductor:

0.08 0.5 mm / 28 20 AWG

strip length:

5 6 mm / 0.2 0.24 inch

weight:

2.720 g

width:

21.82 mm / 0.859 inch
