Description

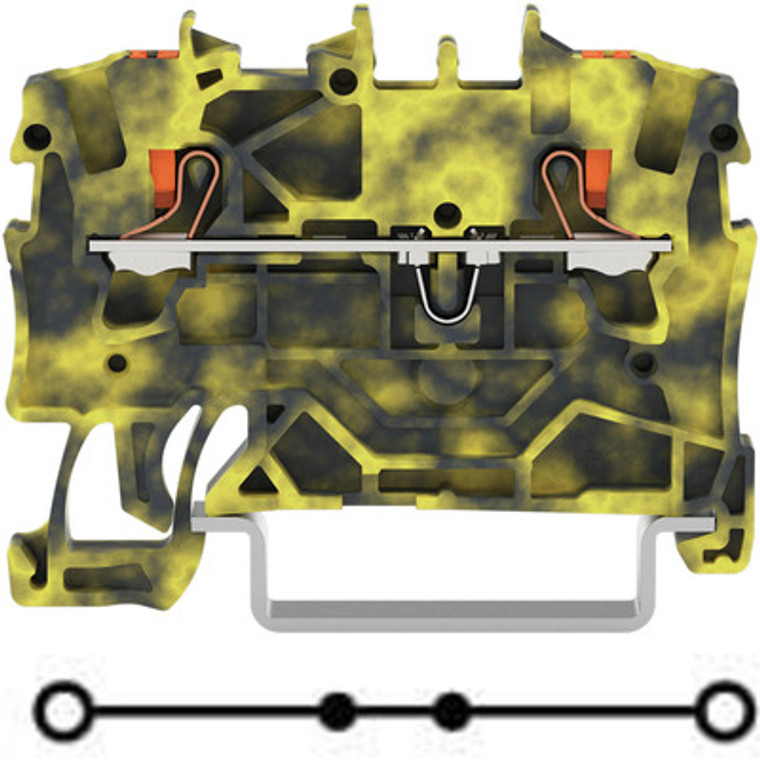

2-conductor through terminal block, with push-button 1.5 mm², dark gray-yellow.
View AllClose
The WAGO 2201 TOPJOB S series feed-through terminal block is a dark gray-yellow, single-deck unit with side and center marking slots, suitable for Ex e II applications. It features a test port, one feed-through pole for two wires (both push-in connections), and supports a nominal cross-section of 1.5mm², accommodating wire sizes from 0.25mm² to 2.5mm² or #22AWG to #14AWG. The terminal block is rated for currents of 18A and 24A, utilizes Push-in CAGE CLAMP spring connections, and mounts on a DIN-35 rail with a width of 4.2mm. It is equivalent to model number 22011201000053.
