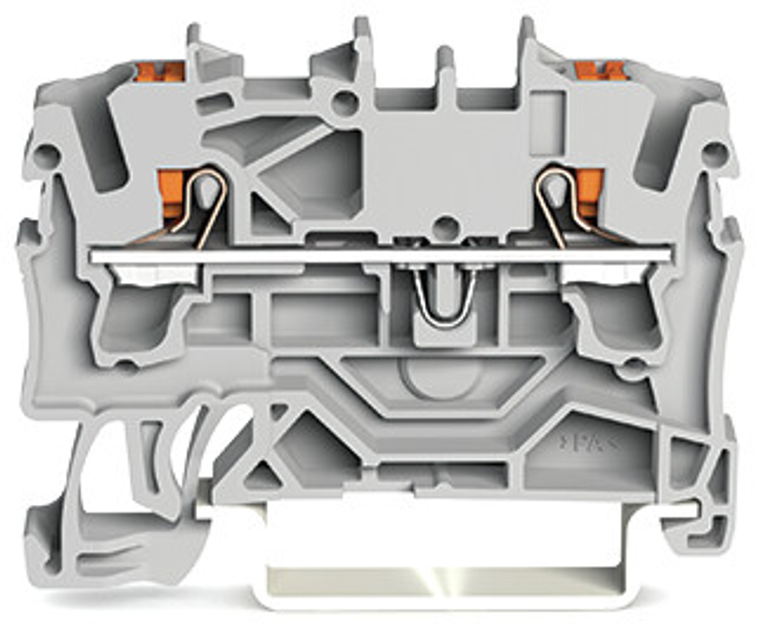

WAGO 2202-1203 2-conductor through terminal block; with push-button; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; red

(No reviews yet) Write a Review
SKU:
2202-1203
MPN:
60388916
Condition:
New
actuation type:
Push-in || Push-button || Operating tool
approvals per:
UL 1059
color:
Red
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
32.9 mm / 1.295 inch
design:
Horizontal type
fine stranded conductor:
0.25 4 mm / 22 12 AWG
fine stranded conductor with ferrule push in termination:
1 2.5 mm / 18 14 AWG
fine stranded conductor with insulated ferrule:
0.25 2.5 mm / 22 14 AWG
fire load:
0.113 MJ
flammability class per ul94:
V0
height:
48.5 mm / 1.909 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
2.5 mm
nominal voltage iii 3:
800 V
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
packaging type:
Box
rated current:
24 A
rated current 2:
32 A
rated current csa use group b:
20 A
rated current csa use group c:
20 A
rated current ex e ii:
22 A
rated current ex e ii with jumper:
20 A
rated current ul use group b:
20 A
rated current ul use group c:
20 A
rated surge voltage iii 3:
8 kV
rated voltage csa use group b:
600 V
rated voltage csa use group c:
600 V
rated voltage en ex e ii:
550 V
rated voltage ul use group b:
600 V
rated voltage ul use group c:
600 V
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.25 4 mm / 22 12 AWG
solid conductor push in termination:
0.75 4 mm / 18 12 AWG
strip length:
10 12 mm / 0.39 0.47 inch
weight:
5.350 g
width:
5.2 mm / 0.205 inch
wiring direction:
Front-entry wiring
  • Wago 2202-1203
  • Wago 2202-1203
$1.77

Description

2-conductor through terminal blockwith push-button 2.5 mm, red

Electrical Data
  • Rated voltage (III / 3): 800 V
  • Rated impulse voltage (III / 3): 8 kV
  • Rated current: 24 A
  • Rated current (2): 32 A
  • Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
  • Connection technology: Push-in CAGE CLAMP<sup></sup>
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross section: 2.5 mm
  • Solid conductor: 0.25 4 mm / 22 12 AWG
  • Solid conductor, push-in termination: 0.75 4 mm / 18 12 AWG
  • Fine-stranded conductor: 0.25 4 mm / 22 12 AWG
  • Fine-stranded conductor with ferrule with plastic collar: 1 2.5 mm / 18 12 AWG
  • Fine-stranded conductor with ferrule, push-in termination, from: 1 2.5 mm / 18 12 AWG
  • Strip length: 10 12 mm / 0.39 0.47 inch
  • Total number of connection points: 2
  • Total number of potentials: 1
  • Number of levels: 1
  • Type of wiring: Front-entry wiring
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
  • Number of jumper slots: 2
Geometrical Data
  • Width: 5.2 mm / 0.205 inch
  • Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
  • Depth: 48.5 mm / 1.909 inch
Mechanical Data
  • Design: horizontal
  • Type of mounting: DIN-35 rail
  • Marking level: Center/side marking
Material Data
  • Color: red
  • Insulating material: Polyamide 66 (PA 66)
  • Fire load: 0.000 MJ
  • Weight: 5.372 g
Commercial data
  • Packaging type: BOX
  • Country of origin: DE
  • GTIN: 4055143822091
  • Customs Tariff No.: 85369010000
.

The WAGO 2202 TOPJOB S series feed-through terminal block is a red, single-deck unit with side and center marking slots, suitable for Ex e II applications. It features a test port and accommodates one feed-through pole with two push-in wire connections, supporting wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG) with a nominal cross-section of 2.5mm². The terminal block is rated for currents of 24A and 32A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5.2mm, equivalent to model 22021203.
