Description

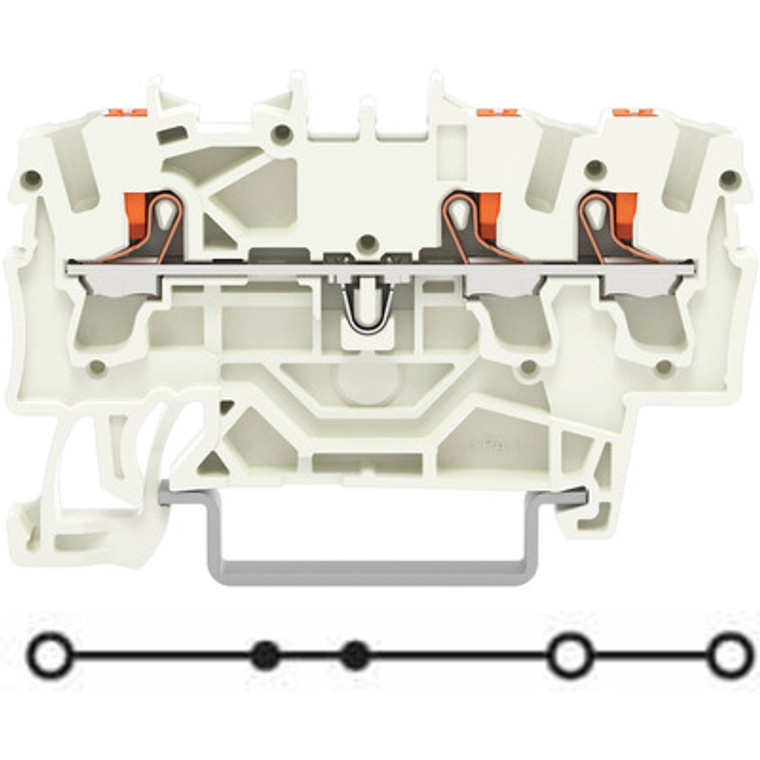

3-conductor through terminal block, with push-button 2.5 mm², light gray.
View AllClose
The WAGO 2202 TOPJOB S series feed-through terminal block is a light gray, single-deck unit with side and center marking slots, suitable for Ex e II applications. It features a test port and accommodates one feed-through pole with three push-in wire connections (1+2 configuration) for wire sizes ranging from 0.25mm² to 4mm² (#22AWG to #12AWG). The terminal block supports a nominal cross-section of 2.5mm² and is rated for currents of 24A and 32A. It utilizes Push-in CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5.2mm, equivalent to model 22021309.
