Wago

WAGO 2202-1402

(No reviews yet) Write a Review
SKU:
2202-1402
MPN:
2202-1402
Condition:
New
  • WAGO 2202-1402
  • WAGO 2202-1402
$2.73

Description

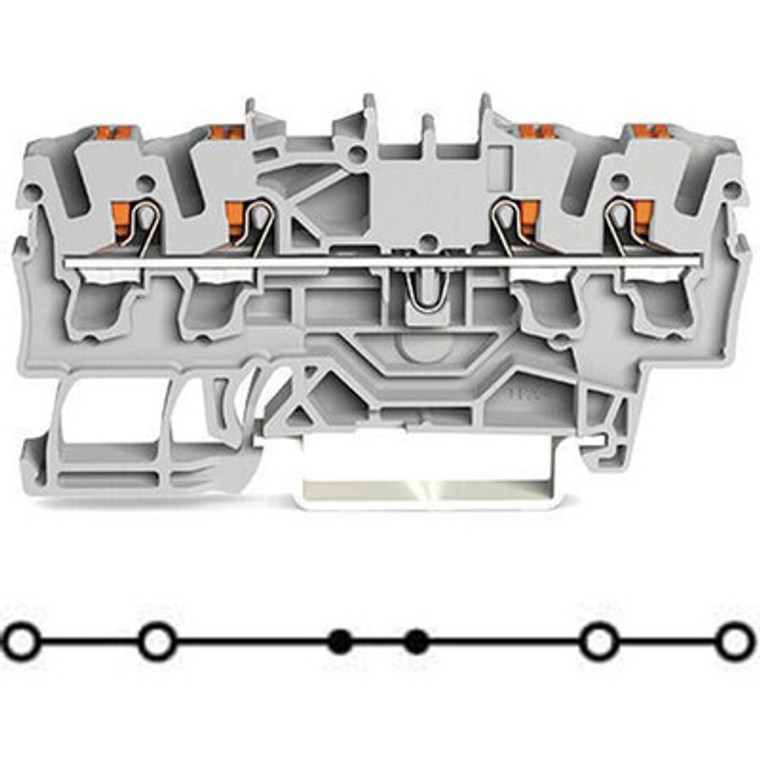

4-conductor through terminal block, with push-button 2.5 mm², orange.

The WAGO 2202 TOPJOB S series feed-through terminal block is an orange, single-deck unit with side and center marking slots, suitable for Ex e II applications. It features a test port and accommodates one feed-through pole with four wires (two push-in connections on each side). The terminal block supports a nominal cross-section of 2.5mm² and is compatible with wire sizes ranging from 0.25mm² to 4mm² (#22AWG to #12AWG). It has a rated current of 24A or 32A and utilizes Push-in CAGE CLAMP spring connections. The unit is designed for mounting on a DIN-35 rail and has a width of 5.2mm, equivalent to model 22021402.
