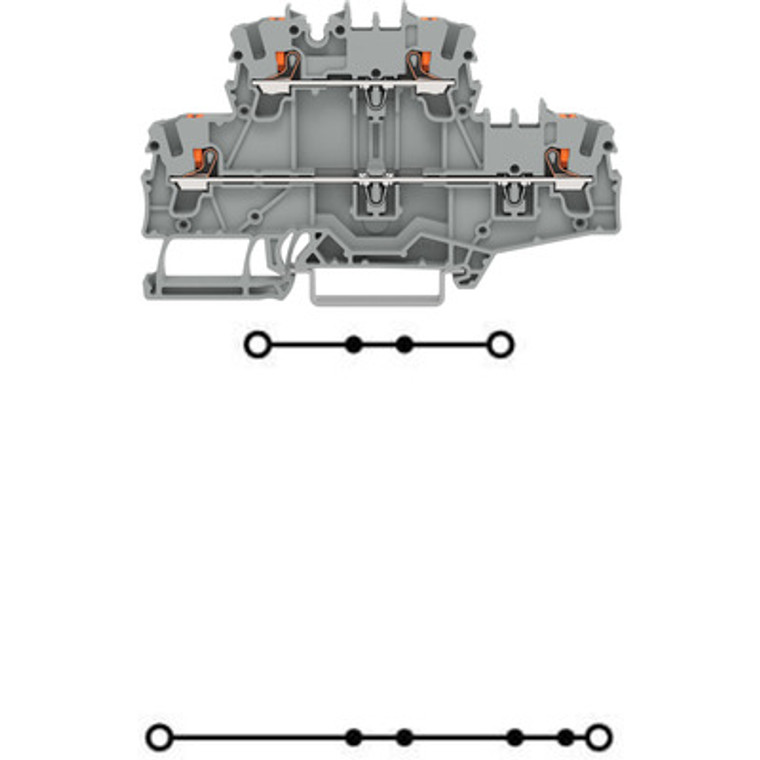

WAGO 2202-2731 Double-Deck Terminal Block with Push-Button, 2.5 mm², Gray
Wago
$4.94
Double-deck terminal block, with push-button Through/through terminal block, gray.
The WAGO 2202 TOPJOB S series is a gray, double-deck feed-through terminal block with marker carrier, suitable for Ex e II applications. It features side and center marking slots, "L/L" marking, and accommodates two feed-through poles with 2 x 2 push-in wire connections. It supports a nominal cross-section of 2.5mm² and wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG), with a rated current of 24A. The terminal block uses Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5.2mm, equivalent to model 22022731.
