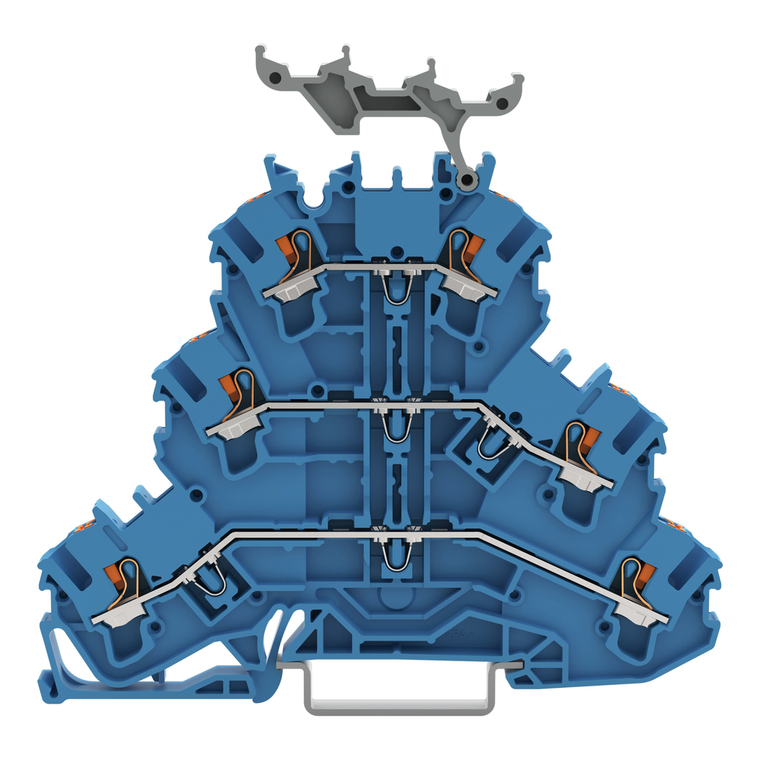

Triple-deck terminal block; with push-button; Through/through/through terminal block; N/N/N; with marker carrier; for Ex e II and Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; blue.
The WAGO 2202 TOPJOB S series is a blue, triple-deck neutral-through terminal block with marker carrier, suitable for Ex e II / Ex I applications. It features three neutral-through poles, each accommodating three push-in connections for a total of six wires, with a nominal cross-section of 2.5mm², supporting wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG). The terminal block is rated for currents of 22A and 26A, utilizes Push-in CAGE CLAMP spring connections, and mounts on a DIN-35 rail with a width of 5.2mm. It includes side, lateral, and center marking slots and is equivalent to model 22023234.
- actuation type:
- Push-in || Push-button
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP®
- CONTINUOUS OPERATING TEMPERATURE:
- -60 ¢¦ +105 °C
- COUNTRY OF ORIGIN VKORG GERMANY:
- DE
- CUSTOMS TARIFF NUMBER VKORG GERMANY:
- 85369010000
- DEPTH FROM UPPER EDGE OF DIN RAIL:
- 83.8 mm / 3.299 inches
- FINE STRANDED CONDUCTOR:
- 0.25 ¢¦ 4 mm² / 22 ¢¦ 12 AWG
- FINE STRANDED CONDUCTOR WITH FERRULE PUSH IN TERMINATION:
- 1 ¢¦ 2.5 mm² / 18 ¢¦ 14 AWG
- FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:
- 0.25 ¢¦ 2.5 mm² / 22 ¢¦ 14 AWG
- FIRE LOAD:
- 0.346 MJ
- FLAMMABILITY CLASS PER UL94:
- V0
- HEIGHT:
- 93.6 mm / 3.685 inches
- INSULATION MATERIAL:
- Polyamide (PA66)
- LEGEND RATINGS:
- (III / 3) ¢ Overvoltage category III / Pollution degree 3
- MARKING LEVEL:
- Center/side marking
- MATERIAL GROUP:
- I
- MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:
- MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=
- MISMATING PROTECTION:
- MOUNTING NOTE=
- MOUNTING TYPE:
- DIN-35 rail
- NOMINAL CROSS SECTION:
- 2.5 mm²
- NOMINAL VOLTAGE III 3:
- 500 V
- NOTE CONDUCTOR CROSS SECTION:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- NOTE MATERIAL DATA:
- Information on material data can be found here
- NUMBER OF CONNECTION POINTS:
- 3
- NUMBER OF CONNECTION POINTS 2:
- 3
- POTENTIAL MARKING:
- N/N/N
- POWER LOSS PER POLE POTENTIAL:
- 0.6437 W
- PROCESSING TEMPERATURE:
- -35 ¢¦ +85 °C
- PRODUCT GROUP CODE:
- 36
- RATED CURRENT:
- 22 A
- RATED CURRENT 2:
- 26 A
- RATED CURRENT EX E II:
- 19 A
- RATED CURRENT EX E II WITH JUMPER:
- 17 A
- RATED CURRENT IN FOR SPECIFIED POWER LOSS:
- 22 A
- RATED IMPULSE VOLTAGE III 3:
- 6 kV
- RATED VOLTAGE EN EX E II:
- 440 V
- RATINGS PER:
- IEC/EN 60947-7-1
- REFERENCE HAZARDOUS AREAS:
- See Downloads ¢ Documentation ¢ Additional Information: Technical Section
- RESISTANCE VALUE FOR SPECIFIED CURRENT DEPENDENT POWER LOSS:
- 0.00133 ©
- SOLID CONDUCTOR:
- 0.25 ¢¦ 4 mm² / 22 ¢¦ 12 AWG
- SOLID CONDUCTOR PUSH IN TERMINATION:
- 0.75 ¢¦ 4 mm² / 18 ¢¦ 12 AWG
- STRIP LENGTH:
- 10 ¢¦ 12 mm / 0.39 ¢¦ 0.47 inches
- WEIGHT:
- 18.030 g
- WIDTH:
- 5.2 mm / 0.205 inches
- WIRING DIRECTION:
- Front-entry wiring
