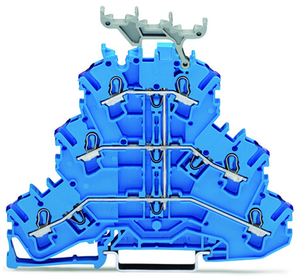

WAGO 2202-3239

SKU:

2202-3239

UPC:

MPN:

2202-3239

Condition:

New

actuation type:

Push-in || Push-button

color:

Blue

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP®

CONTINUOUS OPERATING TEMPERATURE:

-60 ƒƒ¢€¦ +105 ƒƒ‚°C

COUNTRY OF ORIGIN VKORG GERMANY:

DE

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85369010000

DEPTH FROM UPPER EDGE OF DIN RAIL:

83.8 mm / 3.299 inches

FINE STRANDED CONDUCTOR:

0.25 ƒƒ¢€¦ 4 mmƒƒ‚² / 22 ƒƒ¢€¦ 12 AWG

FINE STRANDED CONDUCTOR WITH FERRULE PUSH IN TERMINATION:

1 ƒƒ¢€¦ 2.5 mmƒƒ‚² / 18 ƒƒ¢€¦ 14 AWG

FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:

0.25 ƒƒ¢€¦ 2.5 mmƒƒ‚² / 22 ƒƒ¢€¦ 14 AWG

FIRE LOAD:

0.351 MJ

FLAMMABILITY CLASS PER UL94:

V0

HEIGHT:

93.6 mm / 3.685 inches

INSULATION MATERIAL:

Polyamide (PA66)

LEGEND RATINGS:

(III / 3) ƒƒ¢‰™ Overvoltage category III / Pollution degree 3

MARKING LEVEL:

Center/side marking

MATERIAL GROUP:

I

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=

MISMATING PROTECTION:

MOUNTING NOTE=

MOUNTING TYPE:

DIN-35 rail

NOMINAL CROSS SECTION:

2.5 mmƒƒ‚²

NOMINAL VOLTAGE III 3:

500 V

NOTE CONDUCTOR CROSS SECTION:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

NOTE MATERIAL DATA:

Information on material data can be found here

POTENTIAL MARKING:

N

POWER LOSS PER POLE POTENTIAL:

0.7661 W

PROCESSING TEMPERATURE:

-35 ƒƒ¢€¦ +85 ƒƒ‚°C

PRODUCT GROUP CODE:

36

RATED CURRENT:

24 A

RATED CURRENT 2:

28 A

RATED CURRENT EX E II:

19 A

RATED CURRENT EX E II WITH JUMPER:

17 A

RATED CURRENT IN FOR SPECIFIED POWER LOSS:

24 A

RATED IMPULSE VOLTAGE III 3:

6 kV

RATED VOLTAGE EN EX E II:

440 V

RATINGS PER:

IEC/EN 60947-7-1

REFERENCE HAZARDOUS AREAS:

See Downloads ƒƒ¢€“ Documentation ƒƒ¢€“ Additional Information: Technical Section

RESISTANCE VALUE FOR SPECIFIED CURRENT DEPENDENT POWER LOSS:

0.00133 ƒƒŽ©

SOLID CONDUCTOR:

0.25 ƒƒ¢€¦ 4 mmƒƒ‚² / 22 ƒƒ¢€¦ 12 AWG

SOLID CONDUCTOR PUSH IN TERMINATION:

0.75 ƒƒ¢€¦ 4 mmƒƒ‚² / 18 ƒƒ¢€¦ 12 AWG

STRIP LENGTH:

10 ƒƒ¢€¦ 12 mm / 0.39 ƒƒ¢€¦ 0.47 inches

WEIGHT:

19.009 g

WIDTH:

5.2 mm / 0.205 inches

WIRING DIRECTION:

Front-entry wiring
