WAGO 2204-1203 2-conductor through terminal block with push-button, 4 mm², red
Wago
$2.43

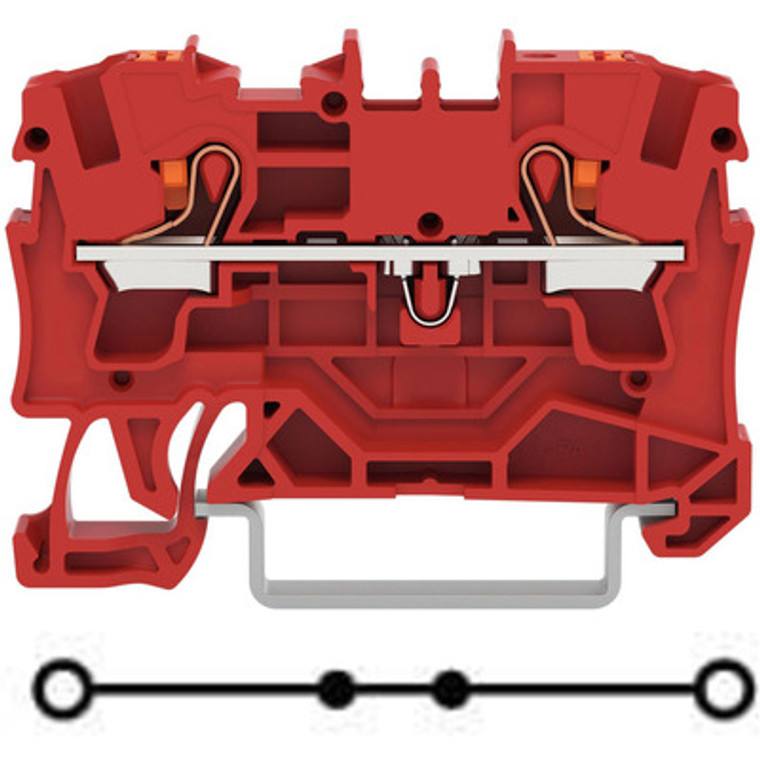

2-conductor through terminal block, with push-button 4 mm², red.
The WAGO 2204 TOPJOB S series feed-through terminal block is a red, single-deck unit with side and center marking slots, suitable for Ex e II applications. It features a test port and accommodates one feed-through pole with two push-in wire connections, supporting a nominal cross-section of 4mm² and wire sizes from 0.5mm² to 6mm² or #20AWG to #10AWG. The terminal block is rated for currents of 32A and 41A, utilizes Push-in CAGE CLAMP spring connections, and mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, with a width of 6.2mm. It is equivalent to the model 22041203.
