Description

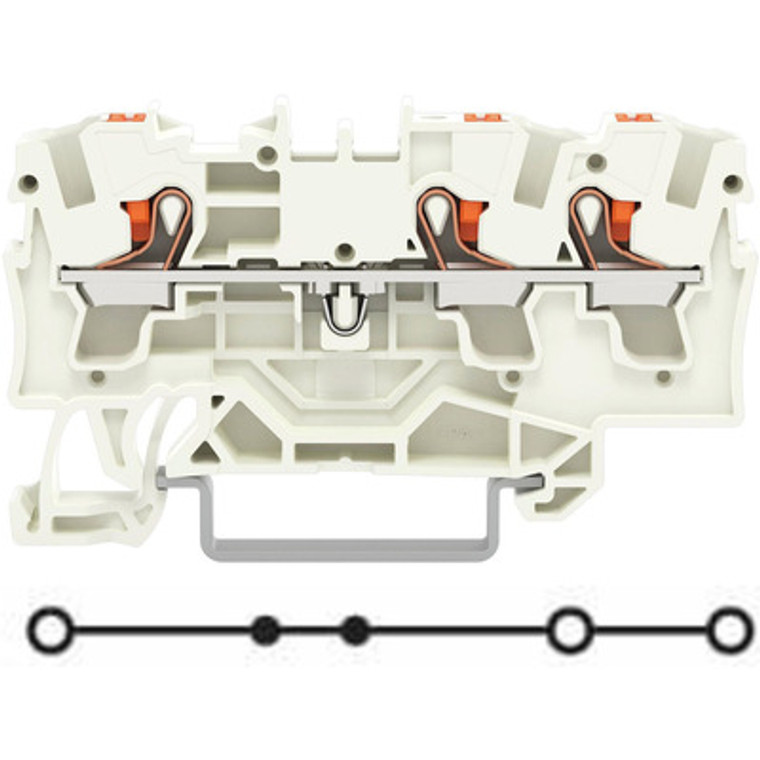

3-conductor through terminal block, with push-button 4 mm², light gray.
View AllClose
The WAGO 2204 TOPJOB S series feed-through terminal block is a light gray, single-deck unit with side and center marking slots, suitable for Ex e II applications. It features a test port and accommodates one feed-through pole with three push-in wire connections (one push-in and two push-in). The terminal block supports a nominal cross-section of 4mm² and is compatible with wire sizes ranging from 0.5mm² to 6mm² or #20AWG to #10AWG. It has a rated current of 32A or 41A and utilizes Push-in CAGE CLAMP spring connections. The unit is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6.2mm, equivalent to model 22041309.
