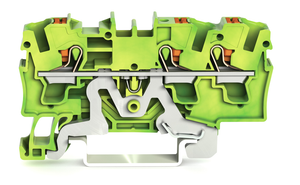

TOPJOBS ground terminal block with Push-buttons; rail mount; 4-conductor; 6.2 mm wide; green-yellow.
The WAGO 2204 TOPJOB S series ground/earthing terminal block is a green-yellow, single-deck unit designed for grounding/protective-earth applications. It features one PE terminal and accommodates four wires using push-in CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.5mm² to 6mm² or #20AWG to #10AWG. The terminal block includes side, lateral, and center marking slots, a test port, and mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5, with a width of 6.2mm. It is equivalent to the model 22041407.
- actuation type:
- Push-in || Push-button || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 4 mm / 18 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 78.7 mm / 3.098 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.5 6 mm / 20 10 AWG
- solid conductor push in termination:
- 1 6 mm / 14 10 AWG
- strip length:
- 11 13 mm / 0.43 0.51 inch
- weight:
- 16.084 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
