Wago

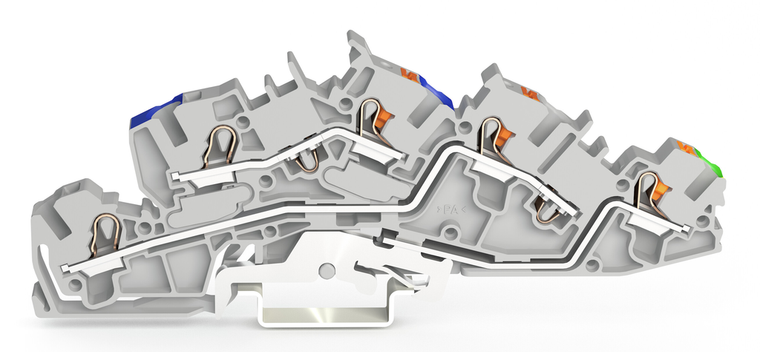

WAGO 2205-7546

SKU:

2205-7546

UPC:

MPN:

2205-7546

Condition:

New

actuation type:

Push-in || Operating tool

actuation type 2:

Push-in || Push-button || Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP«

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

45.6 mm / 1.8 inch

fine stranded conductor:

0.5 ƒƒ‡ª 6 mm / 20 ƒƒ‡ª 10 AWG

fine stranded conductor with ferrule push in termination:

1.5 ƒƒ‡ª 4 mm / 18 ƒƒ‡ª 12 AWG

fine stranded conductor with insulated ferrule:

0.5 ƒƒ‡ª 4 mm / 20 ƒƒ‡ª 12 AWG

fire load:

0.006 MJ

flammability class per ul94:

V0

height:

123.5 mm / 4.862 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

4 mm

nominal voltage iii 3:

250 V

note:

Available January 2022

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

32 A

rated current 2:

36 A

rated surge voltage iii 3:

4 kV

rated surge voltage iii 3 2:

6 kV

rated voltage iii 3 2:

400 V

ratings note:

Potential ƒƒ‡ƒƒ´ ground

ratings note 2:

Potential ƒƒ‡ƒƒ´ potential

solid conductor:

0.5 ƒƒ‡ª 6 mm / 20 ƒƒ‡ª 10 AWG

solid conductor push in termination:

1.5 ƒƒ‡ª 6 mm / 14 ƒƒ‡ª 10 AWG

strip length:

11 ƒƒ‡ª 13 mm / 0.43 ƒƒ‡ª 0.51 inch

weight:

30.011 g

width:

6.2 mm / 0.244 inch

wiring direction:

Front-entry wiring
