Wago

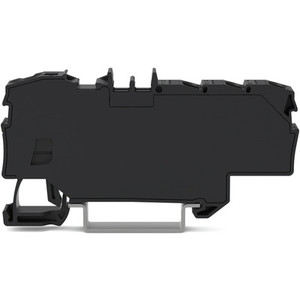

WAGO 2206-8035

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 2206-8035

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2206-8035

UPC:

MPN:

2206-8035

Condition:

New

actuation type:

Push-in || Push-button

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Black

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP«

connection technology 2:

Push-in CAGE CLAMP«

connection type 1:

Input

connection type 2:

Output

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

32.9 mm / 1.295 inch

fine stranded conductor:

0.5 ƒƒ‡ª 10 mm / 20 ƒƒ‡ª 8 AWG

fine stranded conductor 2:

0.25 ƒƒ‡ª 2.5 mm / 22 ƒƒ‡ª 14 AWG

fine stranded conductor with ferrule push in termination:

2.5 ƒƒ‡ª 6 mm / 16 ƒƒ‡ª 10 AWG

fine stranded conductor with ferrule push in termination 2:

0.75 ƒƒ‡ª 1.5 mm / 18 ƒƒ‡ª 16 AWG

fine stranded conductor with insulated ferrule:

0.5 ƒƒ‡ª 6 mm / 20 ƒƒ‡ª 10 AWG

fine stranded conductor with insulated ferrule 2:

0.25 ƒƒ‡ª 1.5 mm / 22 ƒƒ‡ª 16 AWG

fire load:

0.307 MJ

flammability class per ul94:

V0

height:

73.8 mm / 2.905 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

6 mm

nominal cross section 2:

1.5 :

nominal voltage iii 3:

800 V

note:

Available December 2021

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

number of connection points:

1

number of connection points 2:

6

rated current:

41 A

rated current 2:

57 A

rated current ex e ii:

36 A

rated current ex e ii with jumper:

24 A

rated surge voltage iii 3:

8 kV

rated voltage en ex e ii:

550 V

solid conductor:

0.5 ƒƒ‡ª 10 mm / 20 ƒƒ‡ª 8 AWG

solid conductor 2:

0.25 ƒƒ‡ª 2.5 mm / 22 ƒƒ‡ª 14 AWG

solid conductor push in termination:

2.5 ƒƒ‡ª 10 mm / 14 ƒƒ‡ª 8 AWG

solid conductor push in termination 2:

0.75 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG

strip length:

13 ƒƒ‡ª 15 mm / 0.51 ƒƒ‡ª 0.59 inch

strip length 2:

9 ƒƒ‡ª 11 mm / 0.35 ƒƒ‡ª 0.43 inch

weight:

16.402 g

width:

9 mm / 0.354 inch

wiring direction:

Front-entry wiring
