Wago 221-482 Pack of 100

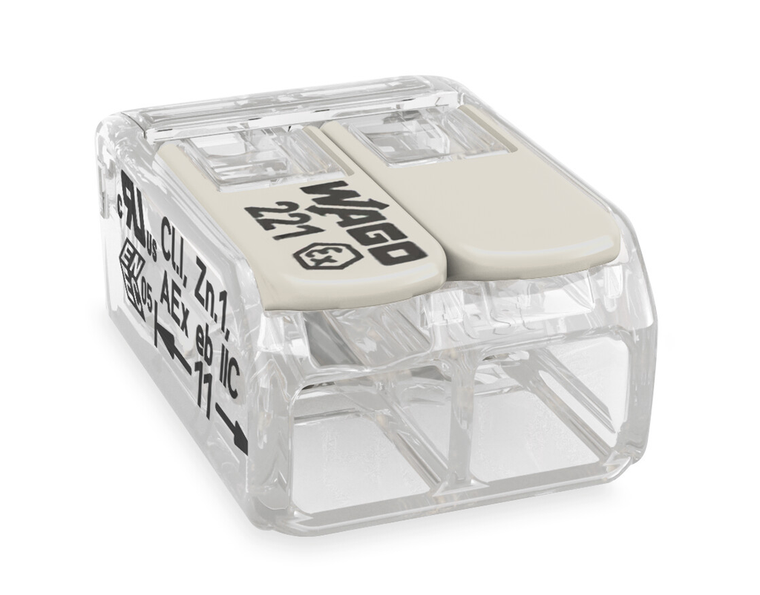

Wago 221-482 2-Wire Lever Splicing Connector, 221 Series, Pack of 100

Wago
SKU:
221-482
Availability:
Contact us to confirm availability and lead times.
$63.70
Condition:
New
Current Stock:
Description
Wago 221-482 2-Wire Lever Splicing Connector, 221 Series This Wago 221-482 is a compact 2-conductor lever splicing connector for Ex e applications, using CAGE CLAMP spring technology in a transparent housing with light gray actuators. It accepts copper conductors from 0.14–4 mm² (fine stranded) and 0.2–4 mm² (solid/stranded), 24–12 AWG, via side-entry wiring with an 11 mm strip length. Rated for up to 24.5 A (Ex e II) at 400–440 V depending on standard, it operates from -55 °C to +105 °C with UL94 V2 flammability and is approved to IEC/EN 60079-7 and UL 60079 for hazardous (Ex) areas when used with the appropriate mounting carrier. The connector is intended for use with mounting carrier 221?501 or approved alternatives inside suitable Ex enclosures, and is commonly applied in industrial control panels, machinery, and process equipment requiring fast, tool-free termination and ATEX/IECEx-compliant connections. Documentation - Technical Datasheet – 221-482 - https://www.wago.com/global/datasheet/221-482 - Installation Instructions / Ex Application Notes – 221-482 - https://www.wago.com/global/installation-instructions/221-482 - ATEX / IECEx Approvals and Certificates – 221-482 - https://www.wago.com/global/approvals/221-482 - 2D/3D CAD Data – 221-482 Compact Splicing Connector - https://www.wago.com/global/cad/221-482
Additional Information
actuation type:
Lever
approvals per:
UL 60079
color:
Transparent
color of actuator:
Light gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
continuous operating temperature:
-55 +105 C
country of origin sales organisation germany:
DE
depth:
18.8 mm / 0.732 inch
fine stranded conductor:
0.14 4 mm / 24 12 AWG
fire load:
0.025 MJ
flammability class per ul94:
V2
height:
8.6 mm / 0.327 inch
nominal cross section:
4 mm
packaging type:
Box
rated current ex e ii:
24.5 A
rated current ul use group c:
20 A
rated voltage en ex e ii:
440 V
rated voltage ul use group c:
440 V
ratings per:
IEC/EN 60079-7
safety information 1:
The permissible operating voltage of the connector with carrier (440 V or 275 V) depends on the mounting type.
safety information 2:
Only approved in conjunction with a mounting carrier (221-501). Other carriers are possible, see certificate/file. The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, Section 1 or
solid conductor:
0.2 4 mm / 24 12 AWG
stranded conductor:
0.2 4 mm / 24 12 AWG
strip length:
11 mm / 0.43 inch
weight:
1.860 g
width:
13.2 mm / 0.52 inch
wiring direction:
Side-entry wiring
